8. To add RMSRA20 to the recovery side Array Manager, define an appropriate name as Display
Name and Select RAID Manager Storage Replication Adapter from an SRA Type that is
connected to RMSRA20.

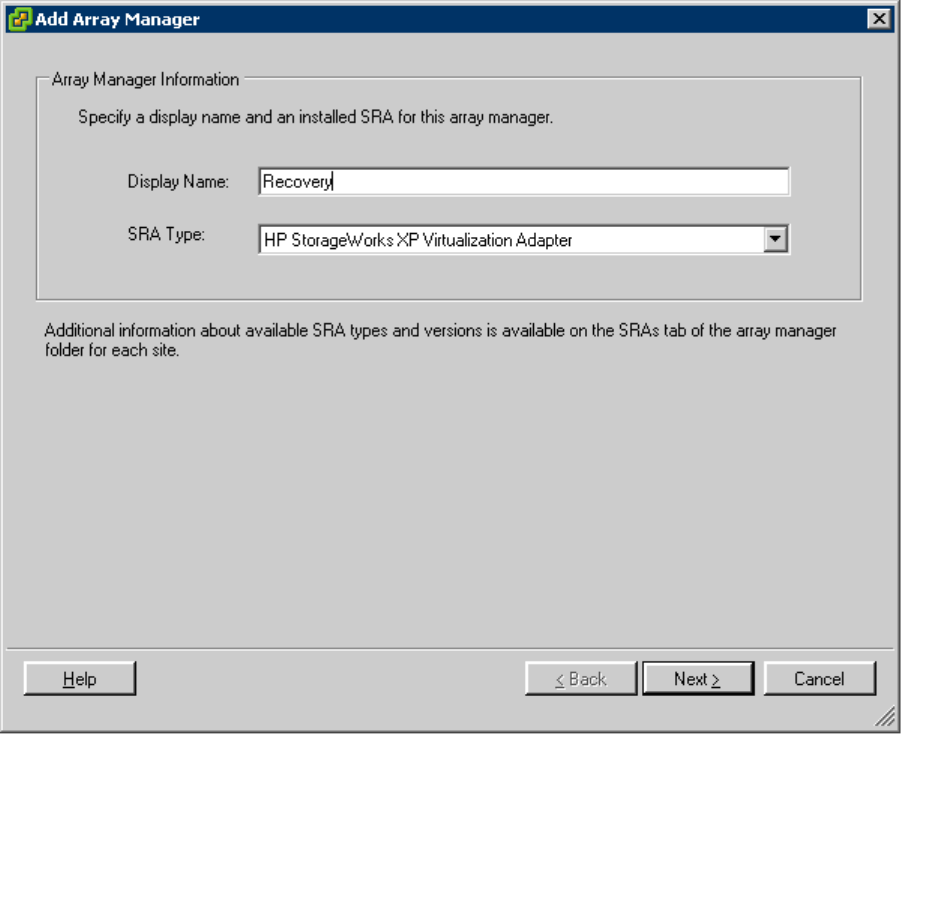

Figure 24 Add RMSRA20 to recovery side
• For an RMSRA20 configuration using remote connection, enter the HORCM instance and
IP Address to connect to the RAID Manager instance via RMSRA20 specifying the following
formats:
Configuring SRM (AM) to communicate with RMSRA20 37
