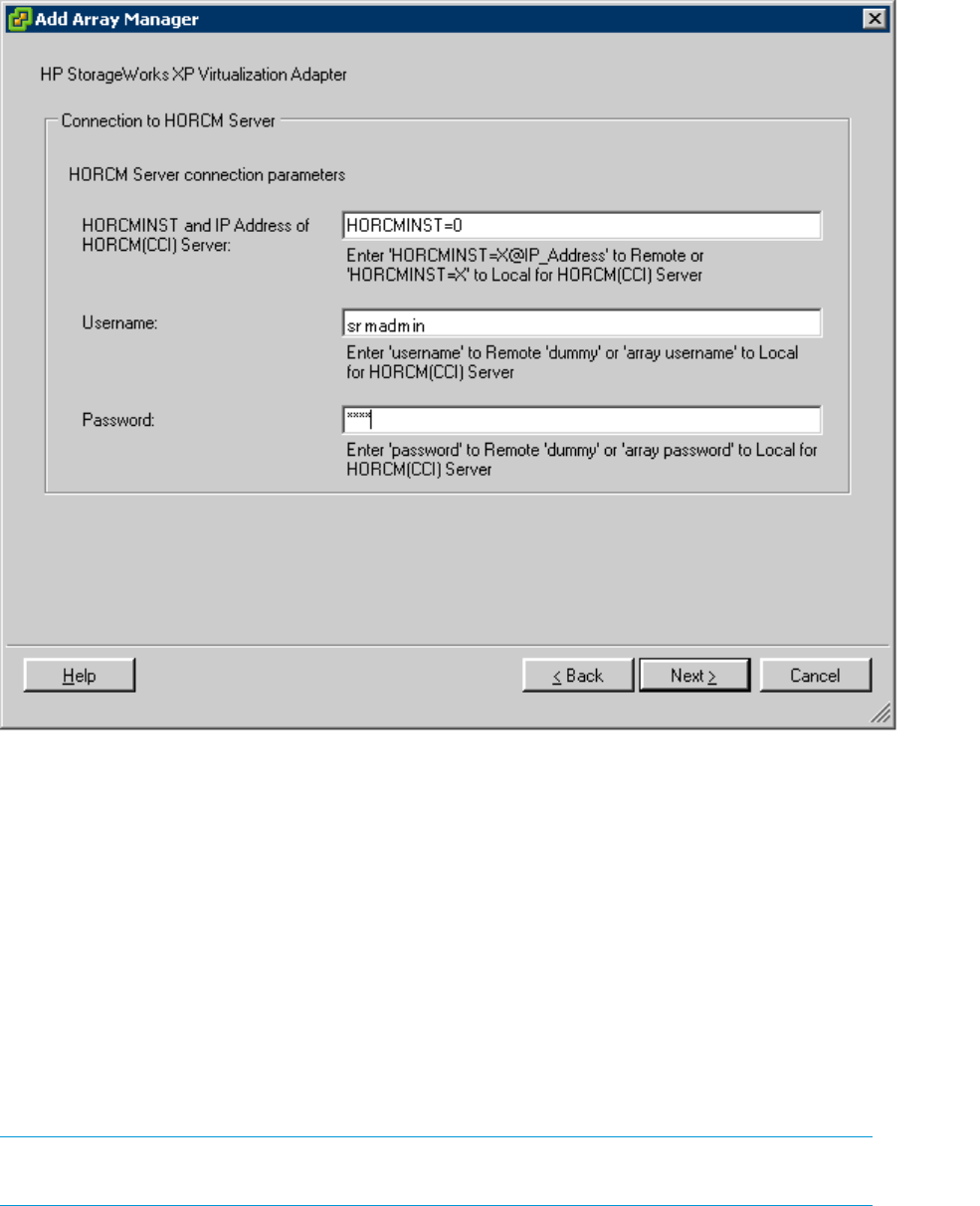

Figure 21 HORCM local connection instance
• To connect to the RAID Manager on the current Windows system, enter one of the
following:
◦ HORCMINST=X, which connects to HORCMINST=X on the current Windows host.
◦ $HORCMINST, which connects to %HORCMINST% set to the current Windows host.
5. Enter the username and password as dummy.
NOTE: If the array is set as the authentication mode command device, enter the username
and password (sraadmin) for the array user.
6. Verify that the connected SRA is the RAID Manager Storage Replication Adapter (see
Figure 22 (page 35)).
34 Configuring SRM and HP XP P9000 disk array
