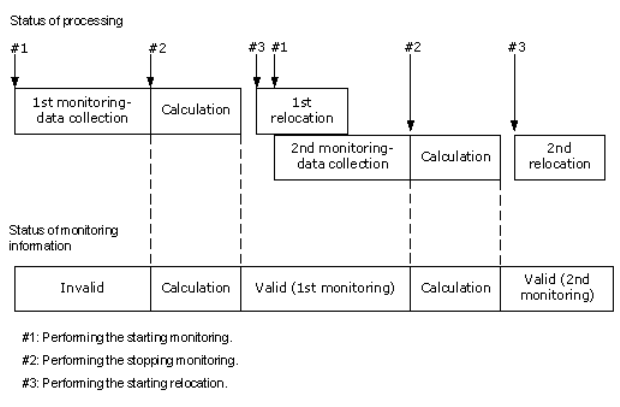

Notes on performing monitoring
• You can collect the monitoring data even while performing the relocation.
• After stopping the monitoring, the tier range is automatically calculated.
• The latest available monitoring information, which is collected just before the relocation is
performed, is used for the relocation processing.
• When the relocation is performed, the status of the monitor information must be valid.
Viewing monitor and tier relocation information:
If the raidcom get thp_pool command is executed with the -key opt option specified, the
monitoring information and tier relocation information are displayed. For details about the raidcom
get thp_pool command, see the HP XP P9000 RAID Manager Reference Guide. Items are
displayed as follows:
• STS
This item displays the operational status of the performance monitor and the tier relocation.
◦ STP: The performance monitor and the tier relocation are stopped.
◦ RLC: The performance monitor is stopped. The tier relocation is operating.
◦ MON: The performance monitor is operating. The tier relocation is stopped.
◦ RLM: The performance monitor and the tier relocation are operating.
• DAT
This item displays the status of the monitor information.
◦ VAL: Valid.
◦ INV: Invalid.
◦ PND: Being calculated.
• R(%)
This item displays the progress percentage of tier relocation.
80 Configuring thin provisioning
