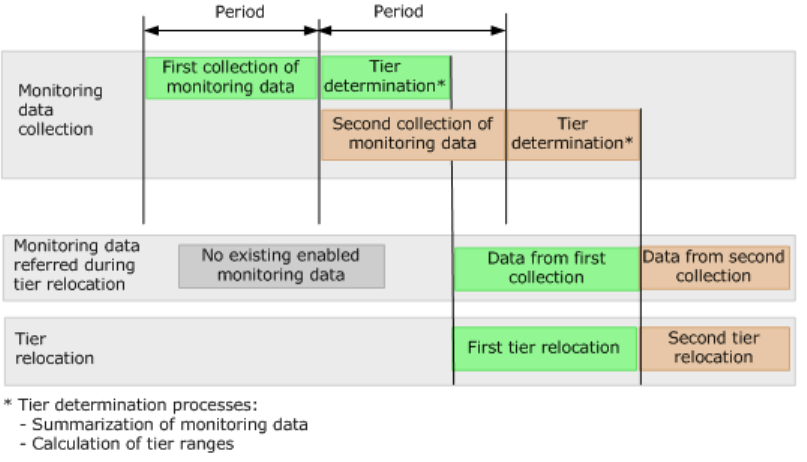

In auto execution mode, the collection of monitoring data and tier relocation operations are
performed in parallel in the next cycle. Data from these parallel processes are stored in two separate
fields.
• Data while monitoring is in progress in the next cycle.
• Fixed monitoring information used in tier reliocation.
Smart Tiers Z 67
