You cannot specify a Thin Provisioning Z or Smart Tiers Z pool-VOL as a Continuous Access
Synchronous Z P-VOL and S-VOL.
Continuous Access Journal Z
You can use Thin Provisioning Z or Smart Tiers Z in combination with Continuous Access Journal
Z to replicate THP V-VOLs.
Figure 2 Using Thin Provisioning Z or Smart Tiers Z and Continuous Access Journal Z
The following table lists the supported Continuous Access Journal Z and Thin Provisioning Z or
Smart Tiers Z volume combinations.
ExplanationContinuous Access
Journal S-VOL
Continuous Access Journal
P-VOL
SupportedTHP V-VOLsTHP V-VOLs
SupportedNormal volumesTHP V-VOLs
SupportedTHP V-VOLsNormal volumes
You cannot specify a Thin Provisioning Z or Smart Tiers Z pool-VOL as a Continuous Access Journal
Z P-VOL or S-VOL.
Business Copy Z
You can use Thin Provisioning Z or Smart Tiers Z in combination with Business Copy Z to replicate
THP V-VOLs.
The following table lists the interaction when the Business Copy Z P-VOL and S-VOL are also THP
V-VOLs.

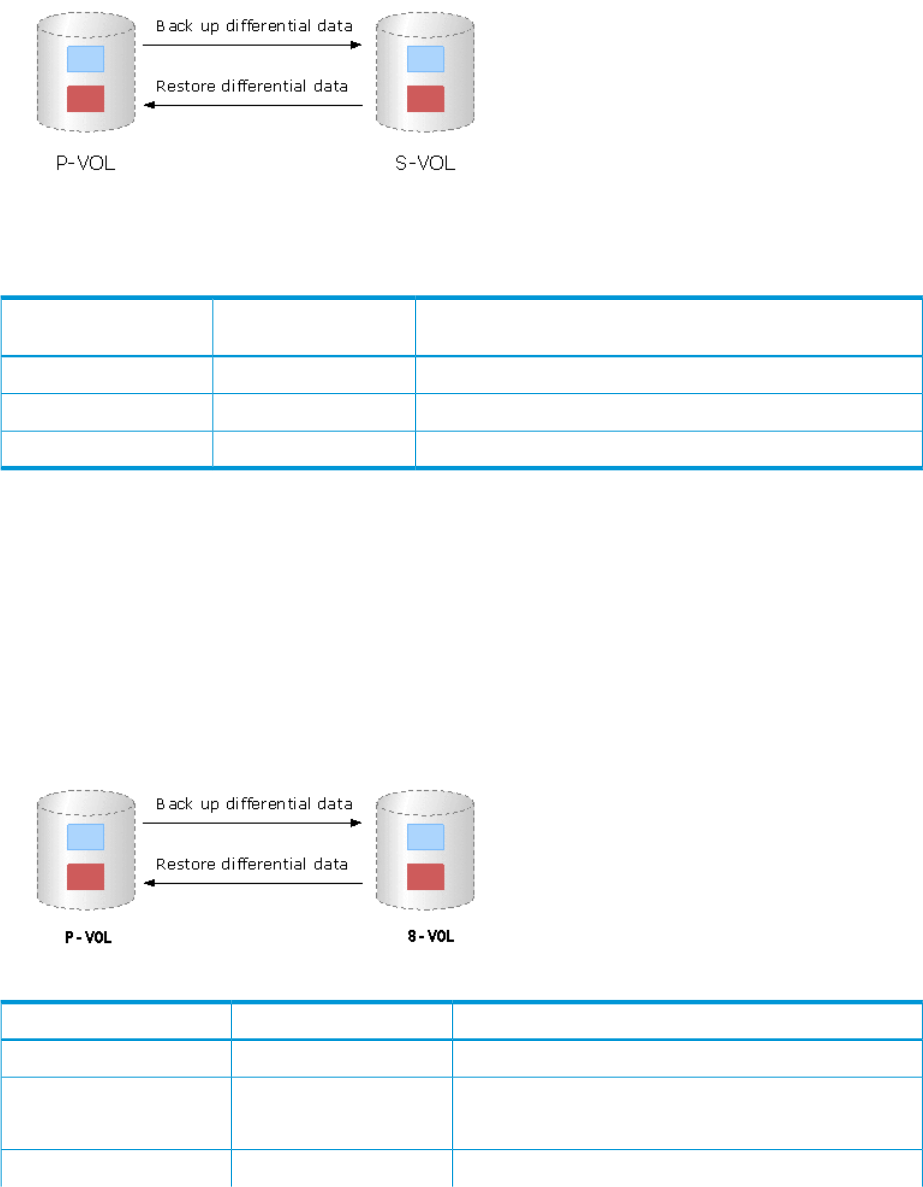

Figure 3 Using Thin Provisioning Z or Smart Tiers Z and Business Copy Z
ExplanationBusiness Copy Z S-VOLBusiness Copy Z P-VOL
Supported.THP V-VOLsTHP V-VOLs
Supported.Normal (ordinary) volumesTHP V-VOLs
The Quick Restore function is unavailable.
Supported.THP V-VOLsNormal (ordinary) volumes
Using Thin Provisioning Z or Smart Tiers Z with other P9500 products 61
