Delete Pools wizard

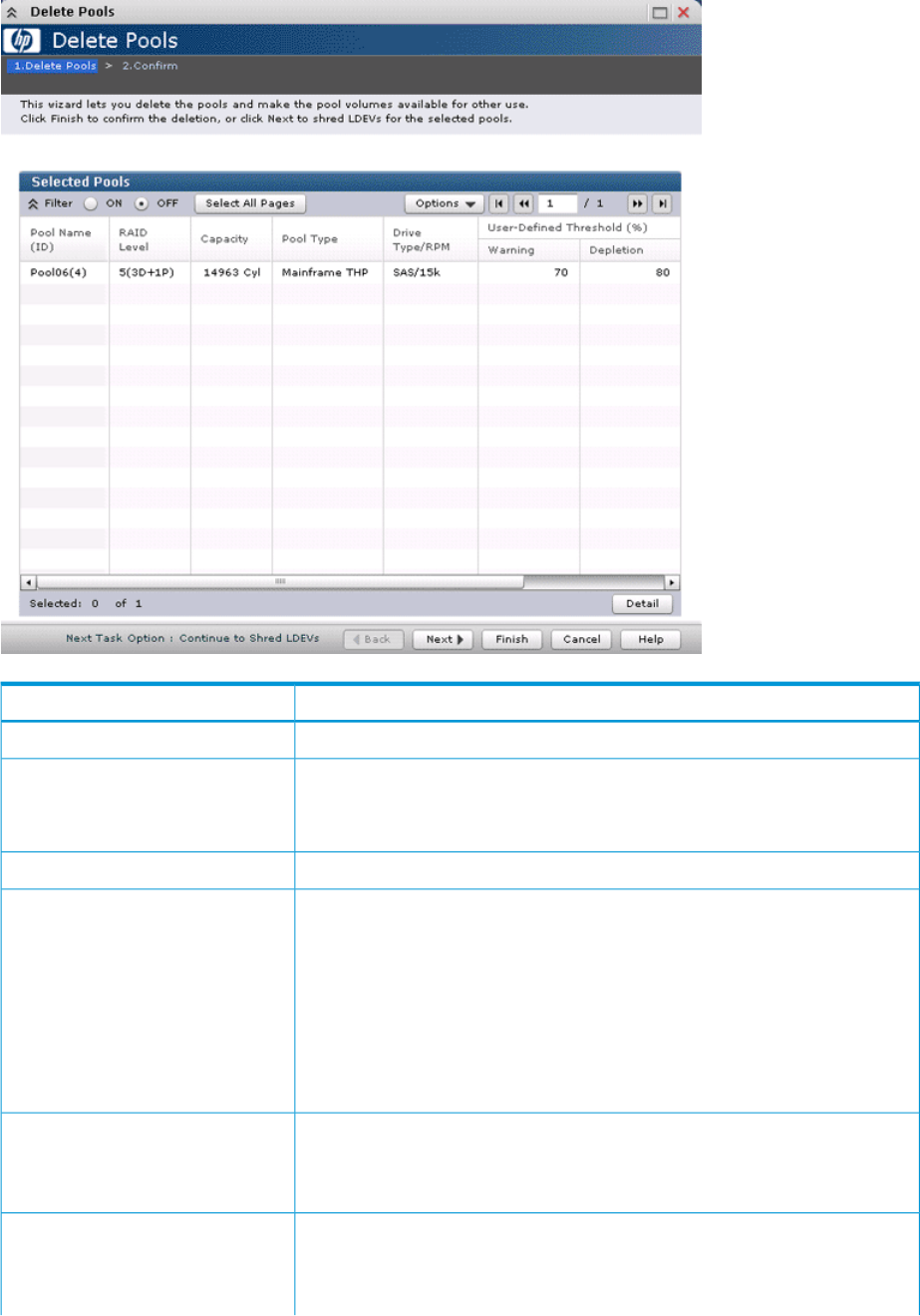

Delete Pools window
DescriptionItem
Displays the pool name and pool ID.Pool Name (ID)
Displays the RAID level.RAID Level
If multiple RAID levels exist in a pool, this field indicates that RAID levels are
mixed.
Displays the pool capacity.Capacity
Displays the pool type.Pool Type
• For a Thin Provisioning pool, THP is displayed.
• For a Smart Tiers pool, Smart is displayed.
• For a Thin Provisioning Z pool, Mainframe THP is displayed.
• For a Smart Tiers Z pool, Mainframe Smart is displayed.
• For a Fast Snap pool, FS is displayed.
• For a Snapshot pool, SS is displayed.
Displays the hard disk drive type and RPM of the pool. If multiple drive types or
RPMs exist in a pool, this field indicates that drive types or RPMs are mixed.
Drive Type/RPM
When the volume is the external volume, Drive Type displays External Storage
and the value of the external LDEV tier rank.
Displays the pool threshold.User-Defined Threshold (%)
• Warning: Warning threshold is displayed.
• Depletion: Depletion threshold is displayed.
