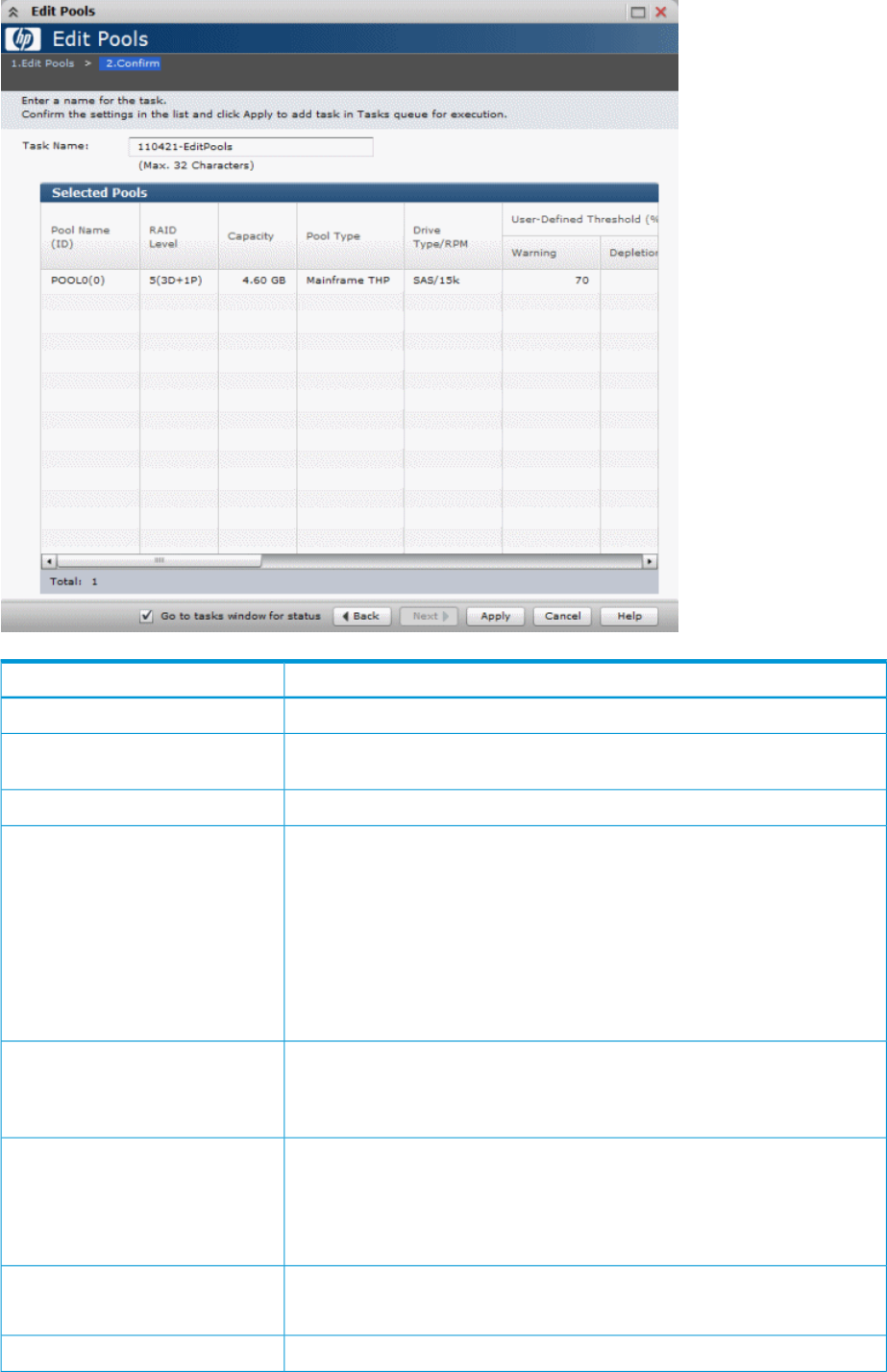

DescriptionItem
Displays the pool name and pool ID.Pool Name (ID)
Displays the RAID level. If multiple RAID levels exist in a pool, this field indicates
that RAID levels are mixed.
RAID Level
Displays the pool capacity.Capacity
Displays the pool type.
• For a Thin Provisioning pool, THP is displayed.
• For a Smart Tiers pool, Smart is displayed.
• For a Thin Provisioning Z pool, Mainframe THP is displayed.
• For a Smart Tiers Z pool, Mainframe Smart is displayed.
• For a Fast Snap pool, FS is displayed.
• For a Snapshot pool, SS is displayed.
Pool Type
Displays the hard disk drive type and RPMs. If multiple drive types or RPMs exist
in a pool, this field indicates Mixed. When the volume is the external volume,
Drive Type/RPM
Drive Type displays External Storage and the value of the external LDEV tier
rank.
Displays the pool threshold.User-Defined Threshold (%)
• Warning: Warning threshold is displayed.
• Depletion: Depletion threshold is displayed.
For a Fast Snap or Snapshot pool, a hyphen (-) is displayed for Depletion.
Displays the subscription limit.Subscription Limit (%)
For Fast Snap or Snapshot pool, a hyphen (-) is displayed.
Displays the number of pool-VOLs.Number of Pool VOLs
