D Thin Provisioning Z and Smart Tiers Z GUI reference
The Thin Provisioning Z and Smart Tiers Z windows, wizards, and dialog boxes are described in
the following topics.
For information about common Remote Web Console operations such as using navigation buttons
and creating tasks, see the HP XP P9000 Remote Web Console User Guide.

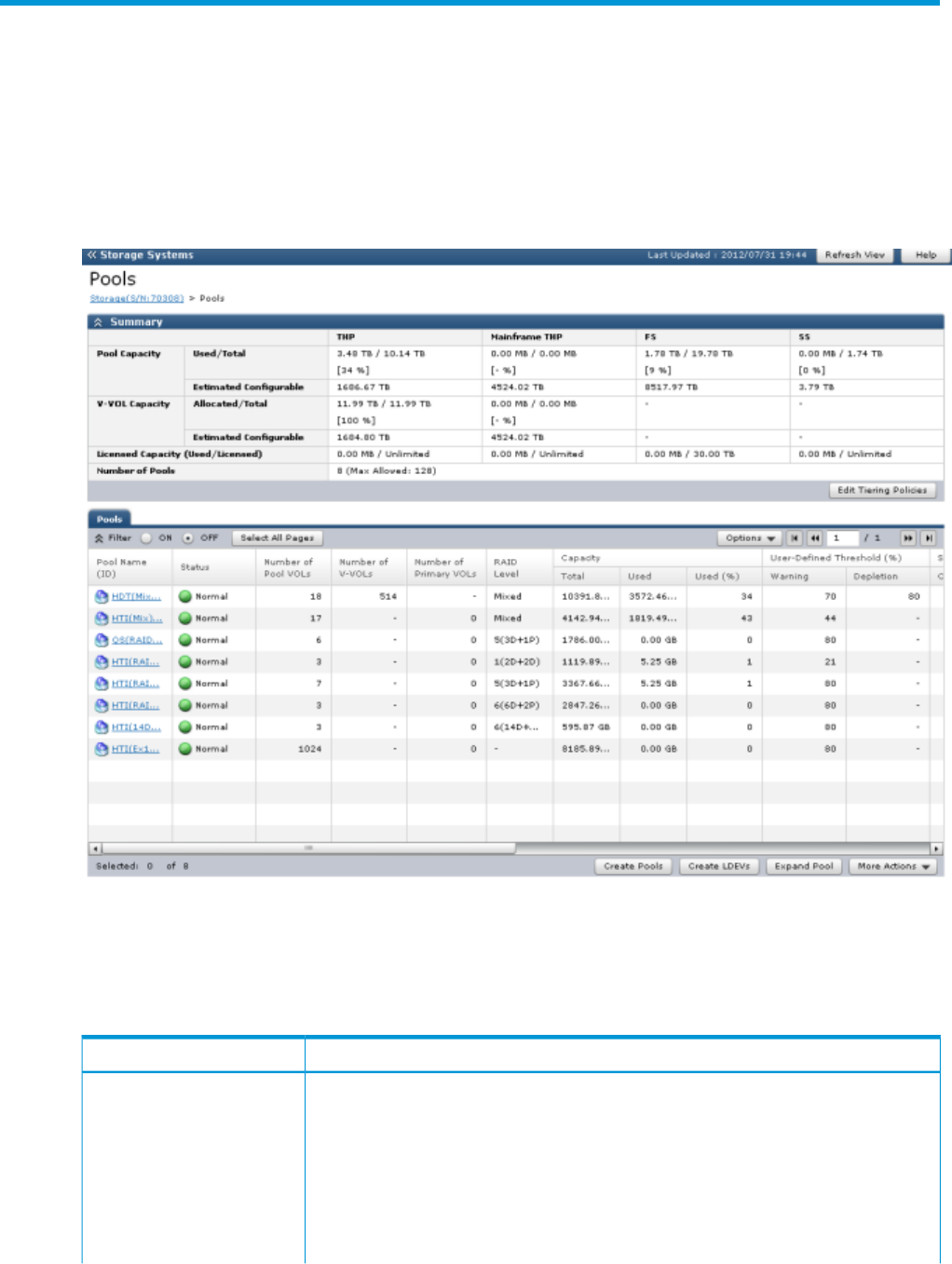

Pools window after selecting pool (Pools window)
• “Summary”
• “Pools tab tab”
Summary
DescriptionItem
Displays information about the pool capacity.Pool Capacity
1
• Used/Total
THP: Displays the pool capacity (used/total) of Thin Provisioning and Smart Tiers.
Mainframe THP: Displays the pool capacity (used/total) of Thin Provisioning Z and
Smart Tiers Z.
FS: Displays the pool capacity (used/total) of Fast Snap.
SS: Displays the pool capacity (used/total) of Snapshot.
