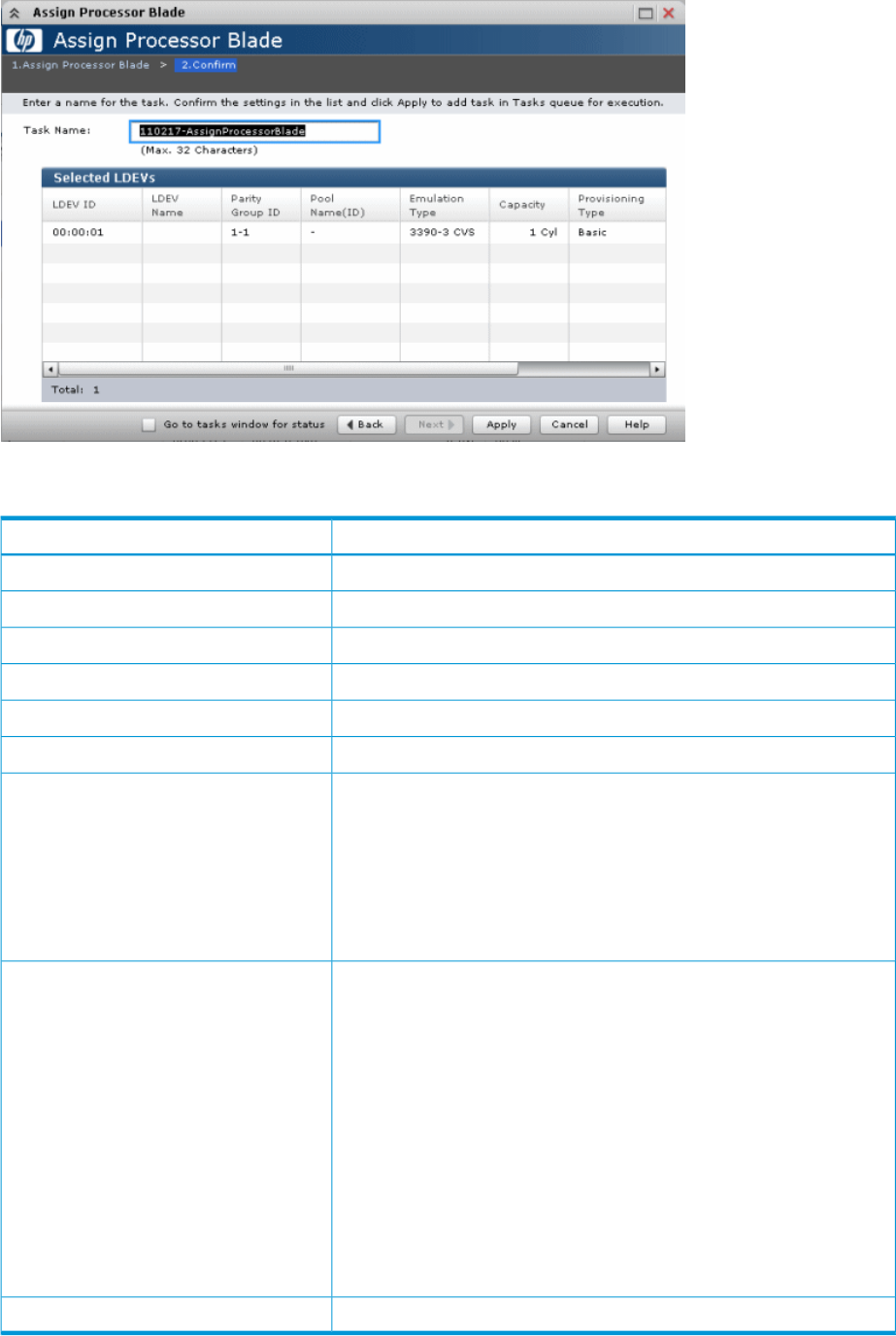

Selected LDEVs table
DescriptionItem
The LDEV identifier, which is the combination of LDKC, CU, and LDEV.LDEV ID
The LDEV name.LDEV Name
The parity group identifier.Parity Group ID
The pool name and pool identifier.Pool Name (ID)
The emulation type.Emulation Type
The LDEV capacity.Capacity
The provisioning type to be assigned to the LDEV.Provisioning Type
• Basic: Internal volume.
• THP: THP V-VOL.
• External: External volume.
• Snapshot: Fast Snap volume or Snapshot volume.
• External MF: Migration volume.
Displays the attribute of the LDEV.Attribute
• Command Device: Command device.
• Remote Command Device: Remote command device.
• System Disk: System disk.
• JNL VOL: Journal volume.
• Pool VOL: Pool volume. The number in parentheses shows the pool ID.
• Reserved VOL: Reserved volume.
• Quorum Disk: Quorum disk for External Storage Access Manager.
• TSE: TSE-VOL.
• Online Data Migration: Volume for online data migration.
• Hyphen (-): Volume in which the attribute is not defined.
Processor blade identifier to be set.MP Blade ID
240 LDEV GUI reference
