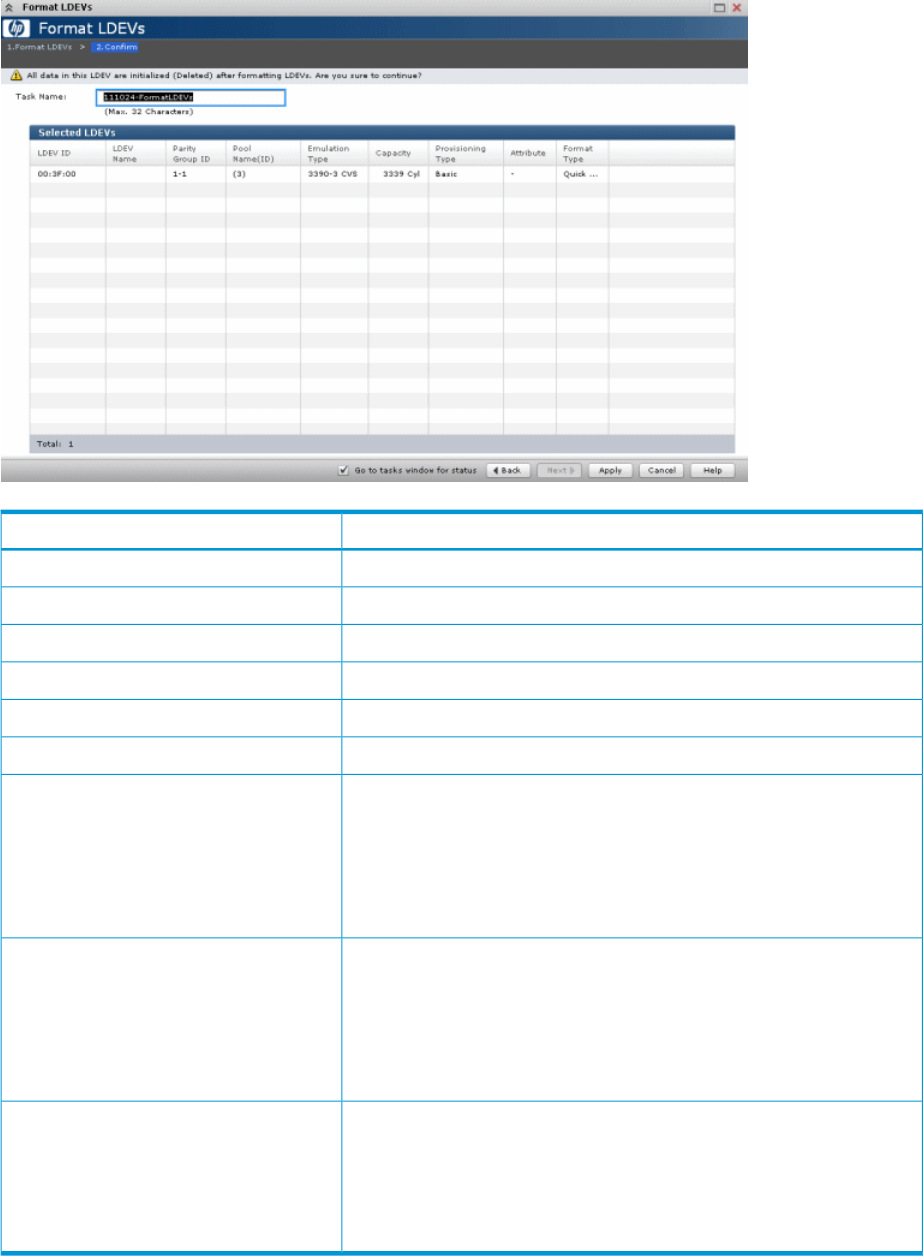

DescriptionItem
The LDEV identifier, which is the combination of LDKC, CU, and LDEV.LDEV ID
The LDEV name.LDEV Name
The parity group identifier.Parity Group ID
The pool name and pool identifier.Pool Name (ID)
The emulation type.Emulation Type
The LDEV capacity.Capacity
The provisioning type to be assigned to the LDEV.Provisioning Type
• Basic: Internal volume.
• THP: THP V-VOL.
• External: External volume.
• Snapshot: Fast Snap volume or Snapshot volume.
Displays the attribute of the LDEV.Attribute
• Command Device: Command device.
• System Disk: System disk
• TSE: TSE-VOL.
• Hyphen (-): Volume in which the attribute is not defined.
How the LDEV will be formatted.Format Type
• Quick Format: Quick-formatting is performed.
• Normal Format: Normal formatting is performed.
• Write-to-Control Blocks: The management area of external volumes for
mainframe systems is overwritten.
Restore LDEVs window
Use this window to recover blocked LDEVs.
228 LDEV GUI reference
