Edit LDEVs window

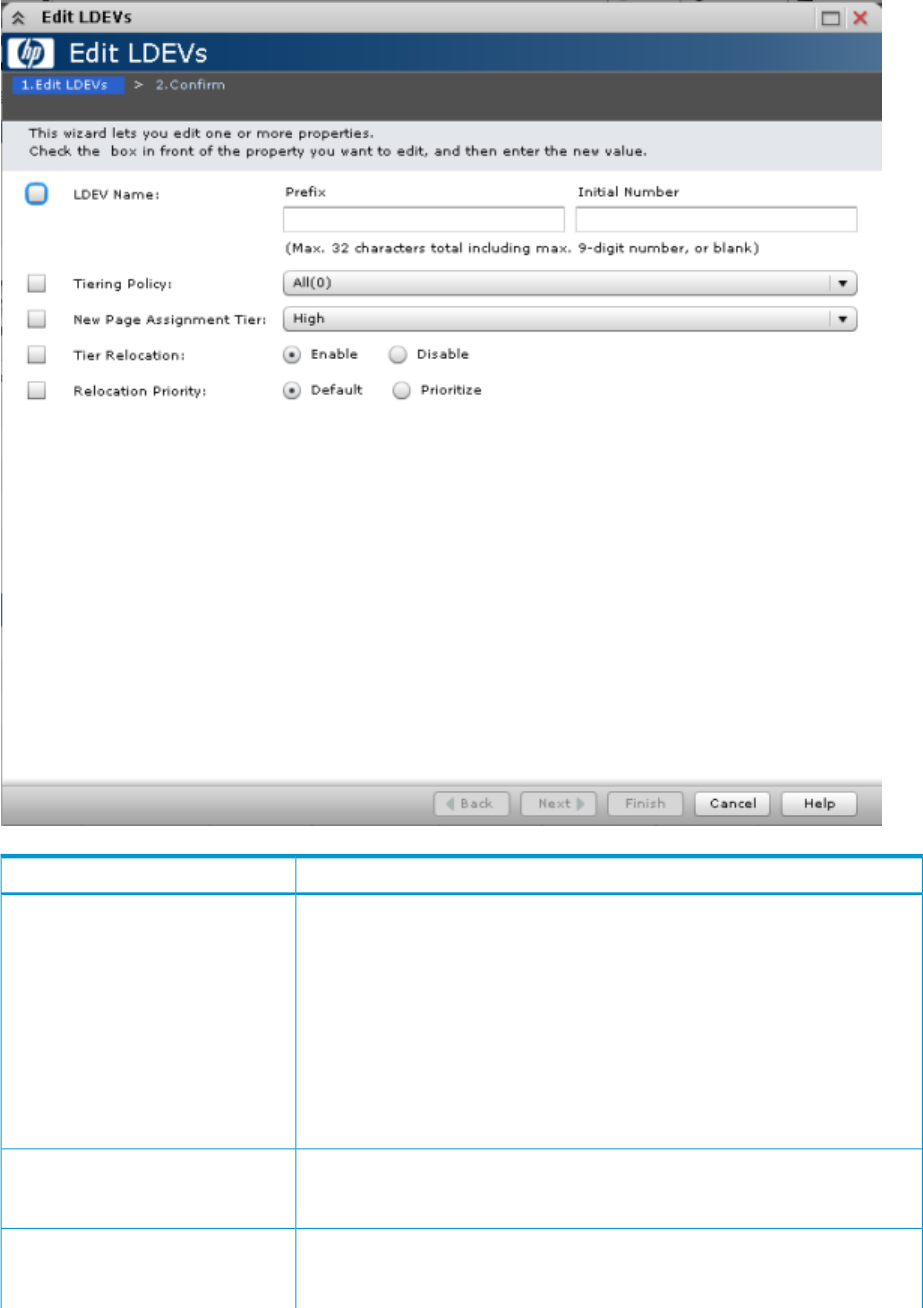

Use this window to edit LDEV properties.
DescriptionItem
Specify the LDEV name, using up to 32 characters.LDEV Name
• Prefix: Fixed character string.
• Initial Number: Initial number.
Specify the prefix characters and the initial number according to these rules.
• 1: Up to 9 numbers are added (1, 2, 3 ... 9)
• 08: Up to 92 numbers are added (08, 09, 10 ... 99)
• 23: Up to 77 numbers are added (23, 24, 25 ... 99)
• 098: Up to 902 numbers are added (098, 099, 100 ... 999)
Specify the tiering policy for the LDEV. For details about the setting. You can
specify this function only when the V-VOLs using Smart Tiers or Smart Tiers Z
are available. See “Notes on tiering policy settings” (page 90)
Tiering Policy
Specify the new page assignment tier you want to assign to the LDEV. Middle
is set by default. You can select from High, Middle, or Low. See “New page
assignment tier” (page 91).
New Page Assignment Tier
218 LDEV GUI reference
