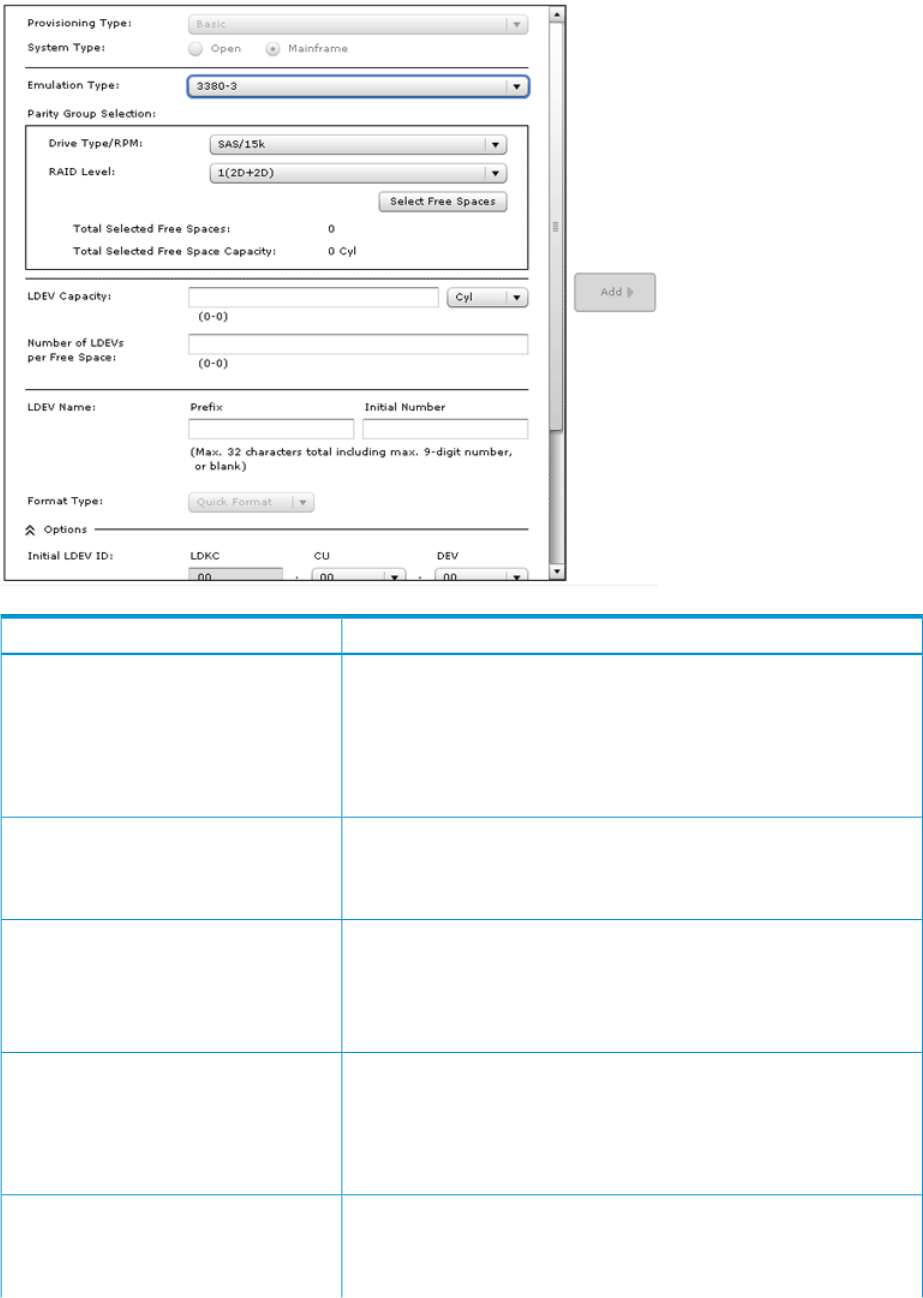

Setting fields
DescriptionItem
Select the type of LDEV.Provisioning Type
• Basic: Internal volume.
• Thin Provisioning: THP V-VOL.
• External: External volume.
• Snapshot: Fast Snap volume or Snapshot volume
Select the system of LDEV.System Type
• Open: Volume for open system.
• Mainframe: Volume of mainframe system.
Select the LDEV emulation.Emulation Type
• For open system, OPEN-V is default.
• For mainframe system, 3380 is default.
• Note: The emulation type might differ depending on the configuration.
Select Enable or Disable of using Smart Tiers or Smart Tiers Z.Smart Pool
• Enable: The pool for Smart Tiers or Smart Tiers Z is displayed in the
Select Pool window.
• Disable: The pool for Thin Provisioning or Thin Provisioning Z is
displayed in the Select Pool window.
Select whether to create TSE-VOL or not.TSE Attribute
• Enable: TSE-VOL is created.
• Disable: TSE-VOL is not created.
Create LDEVs wizard 211
