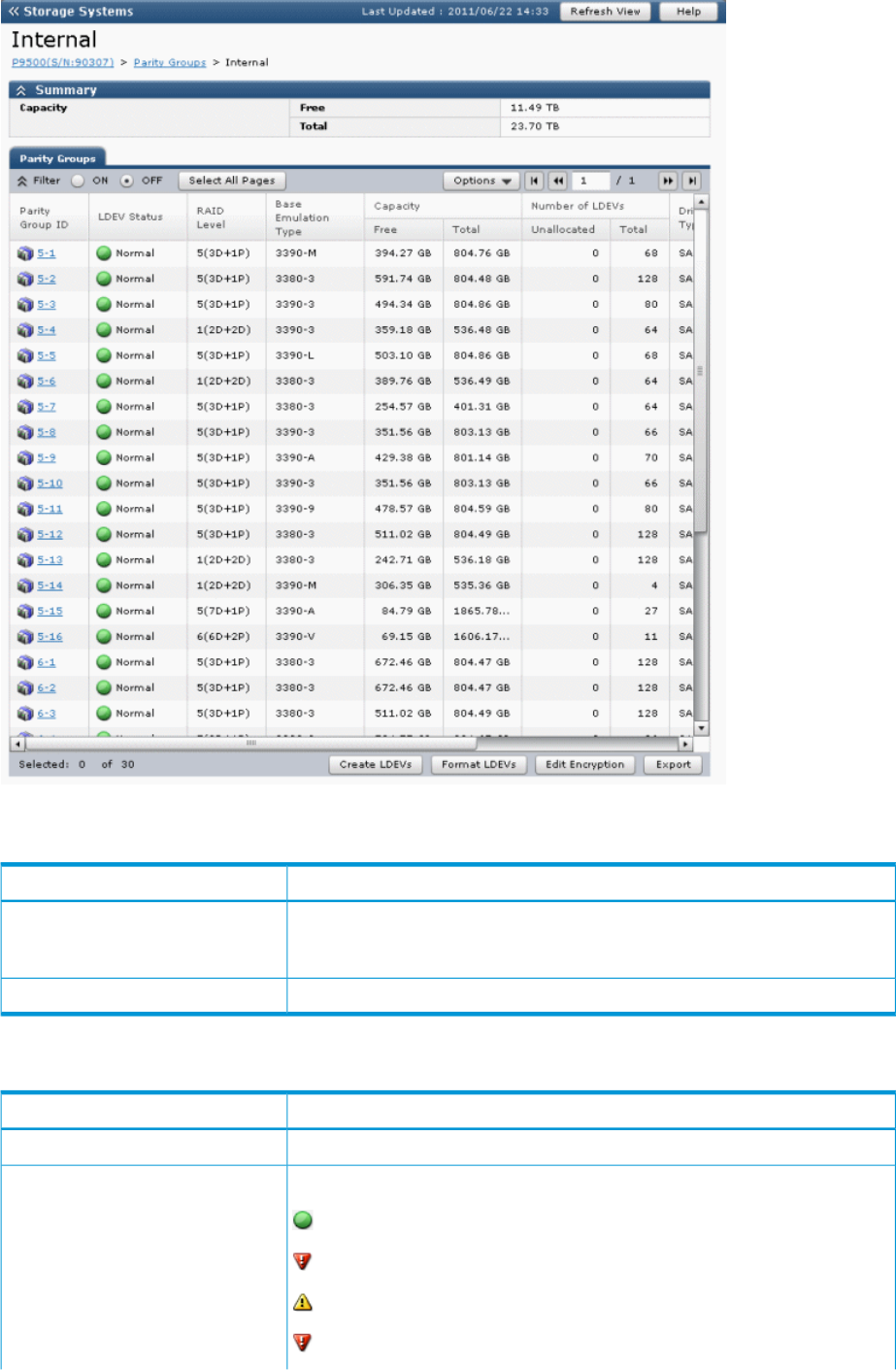

Summary
DescriptionItem
The free space capacity of the internal (or external) volume. The control
information, such as control cylinders, used by the storage system is not included
in the displayed capacity.
Capacity - Free
The total capacity of the LDEVs and "Capacity - Free" is displayed.Capacity - Total
Parity Groups tab
DescriptionItem
The parity group identifiers of the parity groups in the storage system.Parity Group ID
The icons indicate the LDEV status.LDEV Status
Normal: Normal status.
Blocked: Host cannot access a blocked volume.
Warning: Problem occurs in the volume.
Formatting: Volume is being formatted.
Parity Groups window after selecting Internal (or External) under Parity Groups 203
