In the initial state, the priority order is APID (hexadecimal number), followed by Route Num (decimal
number) and then Lst (decimal number), and the information is displayed in ascending hexadecimal
order.
If d is specified for AC for the first entry of the route in the Entire Route Information panel, then all
corresponding entries in the route (those that have the same value for Route Num) The Confirm
Route Delete panel (see “Confirm Route Delete Panel” (page 180)) is displayed to confirm the
deletion.
If F3=Exit is pressed while the Entire Route Information panel is displayed, the Confirm Configuration
File Update panel (see “Confirm Configuration File Update Panel” (page 177)) is displayed to
confirm the updating of the route list definition file.
Add Route Entry Panel
If F5=Add is pressed while the Entire Route Information panel is displayed, the Add Route Entry
panel is displayed to add the first route entry to the route list.

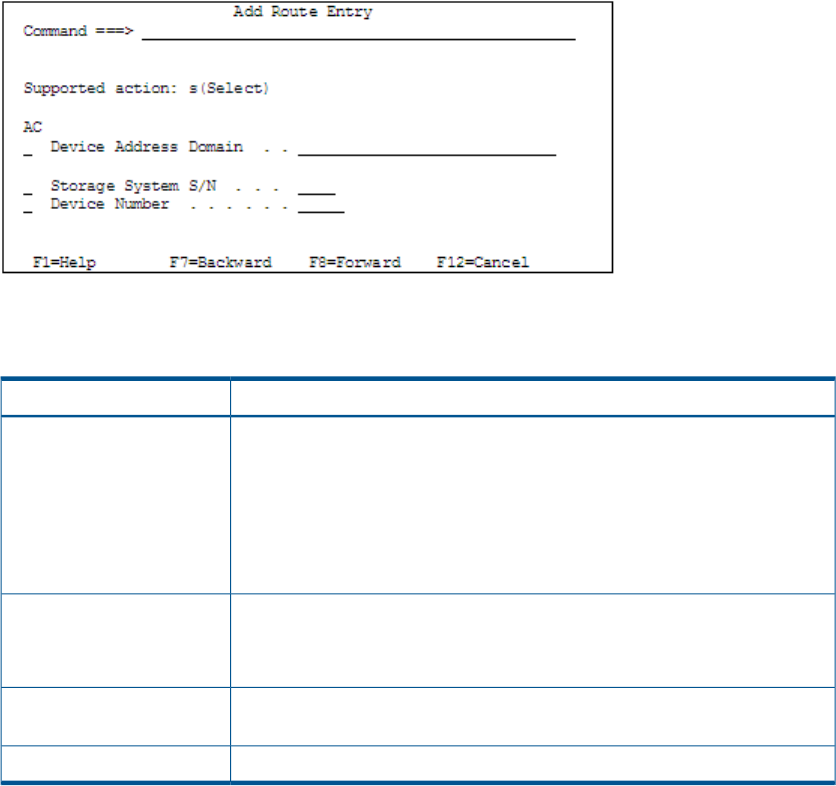

Figure 45 (page 55) shows the Add Route Entry panel.
Figure 45 Add Route Entry Panel
Table 36 (page 55) describes the items in the Add Route Entry panel.
Table 36 Contents of the Add Route Entry Panel
DescriptionItem
Specify an action.AC
s— Specify this when you do not manually type in a DAD ID and storage
system serial number, or a command device, but select them from the list.
When you specify this in either Device Address Domain or Storage System
S/N, the Storage System/Device Address Domain Selection List panel is
displayed. When you specify this in Device Number, the Define Command
Device panel is displayed.
Specify the first DAD ID of the route to be added to the route list.Device Address Domain
The DAD ID that is specified for a remote scan or NG scan cannot be
specified.
Enter the storage system serial number for the command device being
registered.
Storage System S/N
Specify the device number of the command device.Device Number
If Enter is pressed while the Add Route Entry panel is displayed, the first entry of the route is added
to the route list using the specified information, and the display returns to the Entire Route Information
panel. However, if the DAD ID that was input differs from the first DAD ID of the route that has
already been registered in the route list, then the Add APID panel is displayed.
