Table 28 Contents of the Add Remote Route Entry Panel
DescriptionItem
Specify the DAD ID of the storage system to be remotely scanned.Remote Device Address Domain
Specify the serial number (alphanumeric characters) of the storage
system to be remotely scanned.
Remote Storage System S/N
Specify the SSID (in hexadecimal) of the command device assigned
to the storage system to be remotely scanned.
SSIDDevice Address for
Command Device
Specify the CU (in hexadecimal) of the command device assigned
to the storage system to be remotely scanned.
CU
Specify the CCA (in hexadecimal) of the command device assigned
to the storage system to be remotely scanned.
CCA
After an entry is added, **** is displayed for Devn of the command device of the corresponding
entry in the Inner Route Information panel.
A disk configuration definition file is created that defines the one command device specified in
this panel. A name that conforms to Configuration File Prefix in the Set Defaults panel and Remote
Device Address Domain in the Add Remote Route Entry panel is applied to the file, in the following
format:
prefix.DSK.SNnnnnn.dad-id
When entering information for prefix and dad-id, names must be 44 characters or less.
Storage System Selection List Panel
If s is specified in AC in the Inner Route Information panel, the Storage System Selection List panel
is displayed. From the list of storage system serial numbers in the DAD ID displayed in the Storage
System Selection List panel, select the storage system to be used as a route entry.

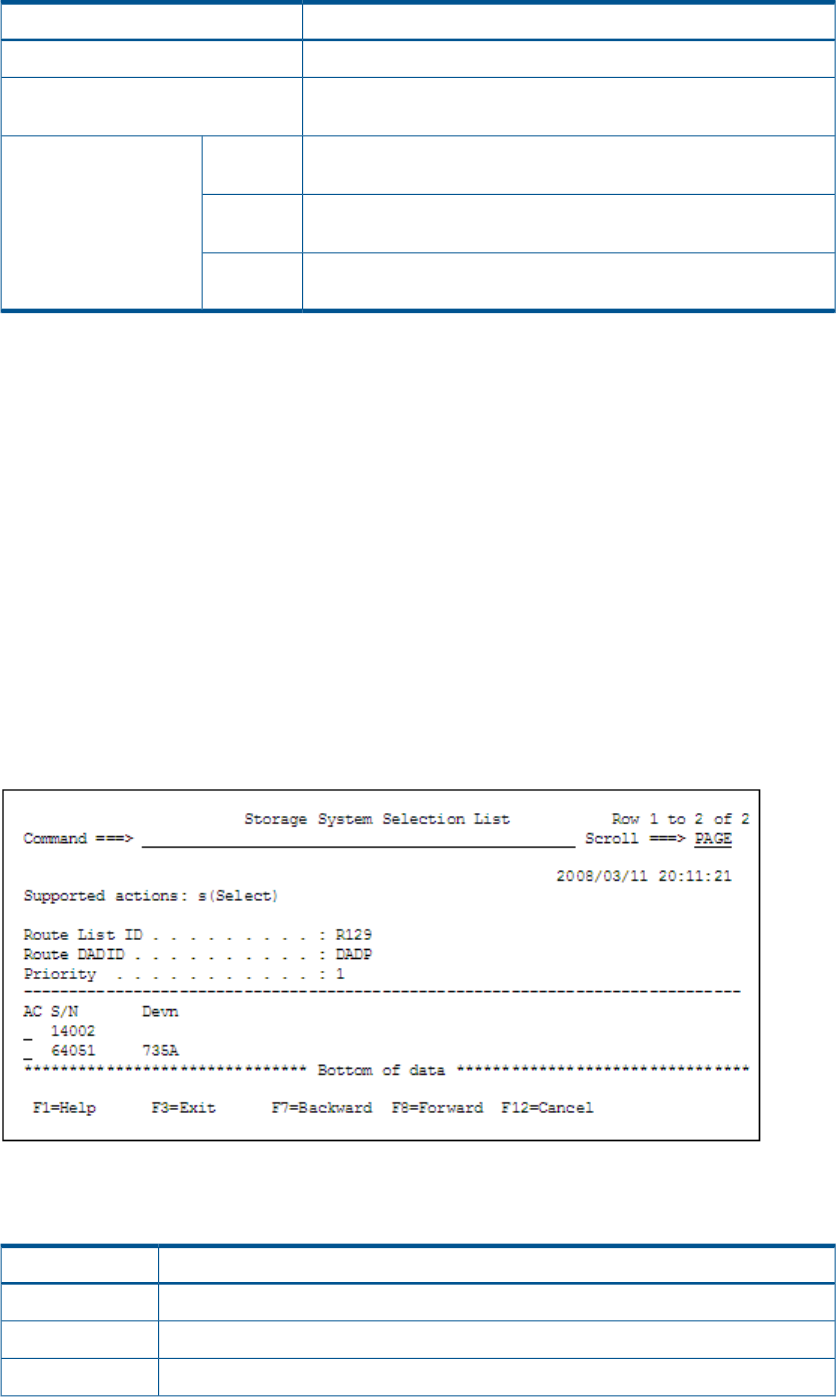

Figure 40 (page 50) shows the Storage System Selection List panel.
Figure 40 Storage System Selection List Panel
Table 29 (page 50) describes the items in the Storage System Selection List panel.
Table 29 Contents of the Storage System Selection List Panel
DescriptionItem
Route list ID selected in the Route Config panelRoute List ID
Route DAD ID selected in the Inner Route Information panelRoute DADID
Priority of the routePriority
