Figure 29 (page 42) shows the Scan Device Address Extent panel.

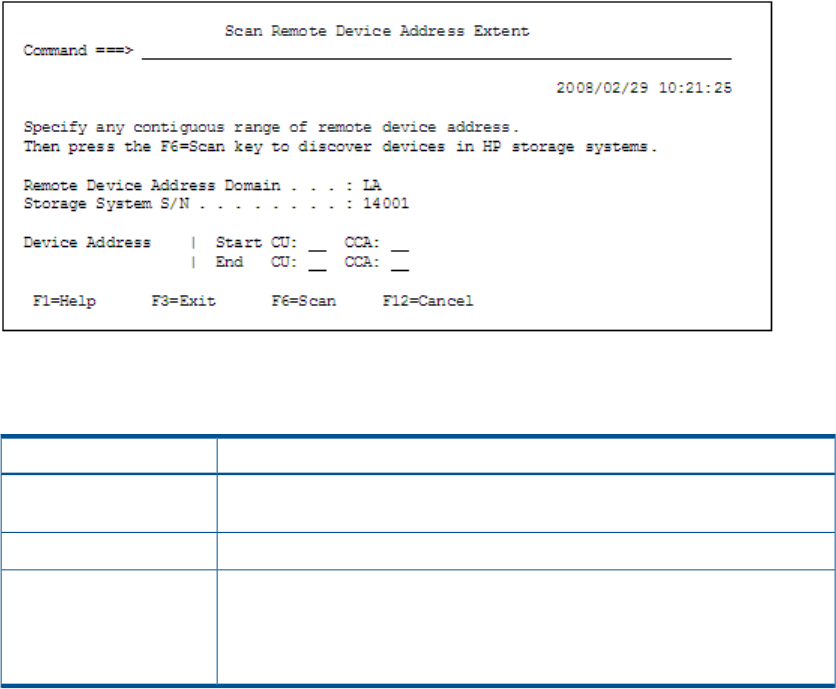

Figure 29 Scan Remote Device Address Extent Panel
Table 22 (page 42) describes the items in the Scan Remote Device Address Extent panel.
Table 22 Contents of the Scan Remote Device Address Extent Panel
DescriptionItem
Device Address Domain ID of the storage system that will be scannedRemote Device Address
Domain
Serial number of the storage system that will be scannedStorage System S/N
Specify Start and End for the device address (control unit and command control
address) range to be remotely scanned.
1
Specify the hexadecimal number in ascending order. If the CCA is omitted,
Start and End will be set to 00 and FF respectively.
Device Address
1
Do not include any volumes that belong to a copy pair that was created by Remote Web Console. If such a volume is
included, the copy pair operations might be disabled.
When F6=Scan is pressed, volumes within the specified values are scanned. If an invalid character
is specified, or if the value specified for Start is greater than the value specified for End, an error
message prompts you to re-enter the values.
The information on the scanned disk configuration is saved in the disk configuration definition file.
Route Config Panel
The Route Config panel is displayed when 2 Route Config is selected in the Discover/Define
Configuration panel. The Route Config panel is used to define a route list.
Figure 30 (page 43) shows the transitions of the operation panel from the Route Config panel.
