HP P9000 Business Continuity Manager Reference Guide (T5253-96058, September 2011)

Capacity Warning Panel
When refreshing a copy group definition file, if the file contains a copy pair whose P-VOL and
S-VOL are different capacities, or the file contains a copy pair for which the capacity of the P-VOL,
S-VOL, or both cannot be acquired, then a Capacity Warning panel is displayed, asking you
whether you want to refresh the file.
Figure 9 (page 20) shows the Capacity Warning panel.

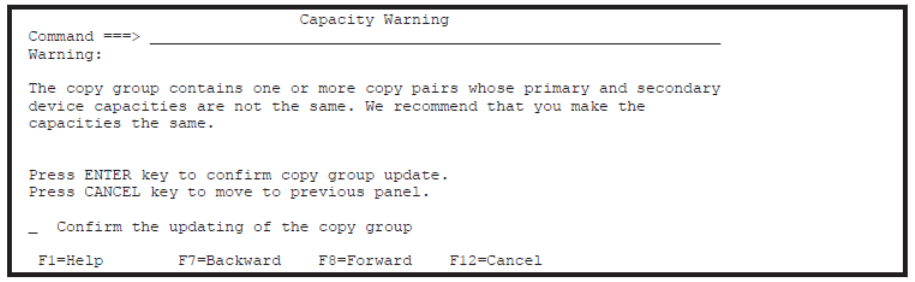

Figure 9 Capacity Warning Panel
Pressing the Enter key transitions to the Copy Group Detail Definition panel. Pressing the F12=Cancel
key stops the update and returns to the previous panel.
Notes Common to All Panels
The following notes are common to all panels:
• XP24000 disk array is displayed as USPV.
• Lowercase letters might not be displayed correctly, depending on the local environment.
Main Menu Panel
Transitions between operating panels starting from the Main Menu are shown in Figure 10 (page
21).
20 ISPF Panels
