normal, they indicate data has not yet been received
by the Nagios engine. Service *may* be fine, but if
it continues to pend for more then about 30 minutes
it may indicate data is not being collected.
n15 [NodeInfo - ASSUMEDOK] Pending services are normal,
they indicate data has not yet been received by the
Nagios engine. Service *may* be fine, but if it
continues to pend for more then about 30 minutes it
may indicate data is not being collected.
n15 [Slurm Status - Critical] sinfo reported problems
with partitions for this node
n15 [System Free Space - ASSUMEDOK] Pending services are
normal, they indicate data has not yet been received
by the Nagios engine. Service *may* be fine, but if
it continues to pend for more then about 30 minutes
it may indicate data is not being collected.
n[8-15] nh [configuration - ASSUMEDOK] Pending services are
normal, they indicate data has not yet been received
by the Nagios engine. Service *may* be fine, but if
it continues to pend for more then about 30 minutes
it may indicate data is not being collected.
21.3 Messages Reported by Nagios
Nagios reports messages in the Service Detail and Service Problems windows. These messages

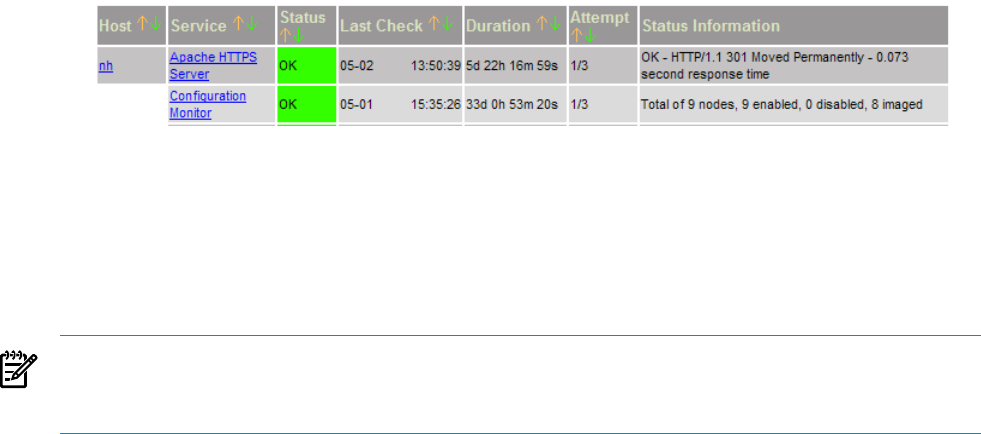

can help you detect current problems and prevent future problems. Figure 21-1 shows a portion
of the Nagios Service Detail window that displays two messages.
Figure 21-1 Nagios Messages
Messages are categorized in the Status column as OK, Unknown, Pending, Warning, and
Critical and are color-coded.
The messages described in this section are indexed by the Service and Status Information columns.
The messages in this section are arranged alphabetically by the Service column entry. If there is
a Warning or Critical message, find the information for that service in the Status Information
column and apply it to the specified Nagios host.
NOTE: The following messages are based on the default values installed on your HP XC system.
They will differ if the messages in the /opt/hptc/nagios/etc/misccommands.cfg file
have been changed.
Service: Apache HTTPS Server
Status Information: HTTPS performance information
Displays the status of the Apache HTTPS web server on the HP XC system.
Service: Configuration Monitor
Status Information: Node information
This message reports the total number of nodes, the number of nodes enabled, the number of nodes
disabled, and the number of nodes imaged.
No action is required.
