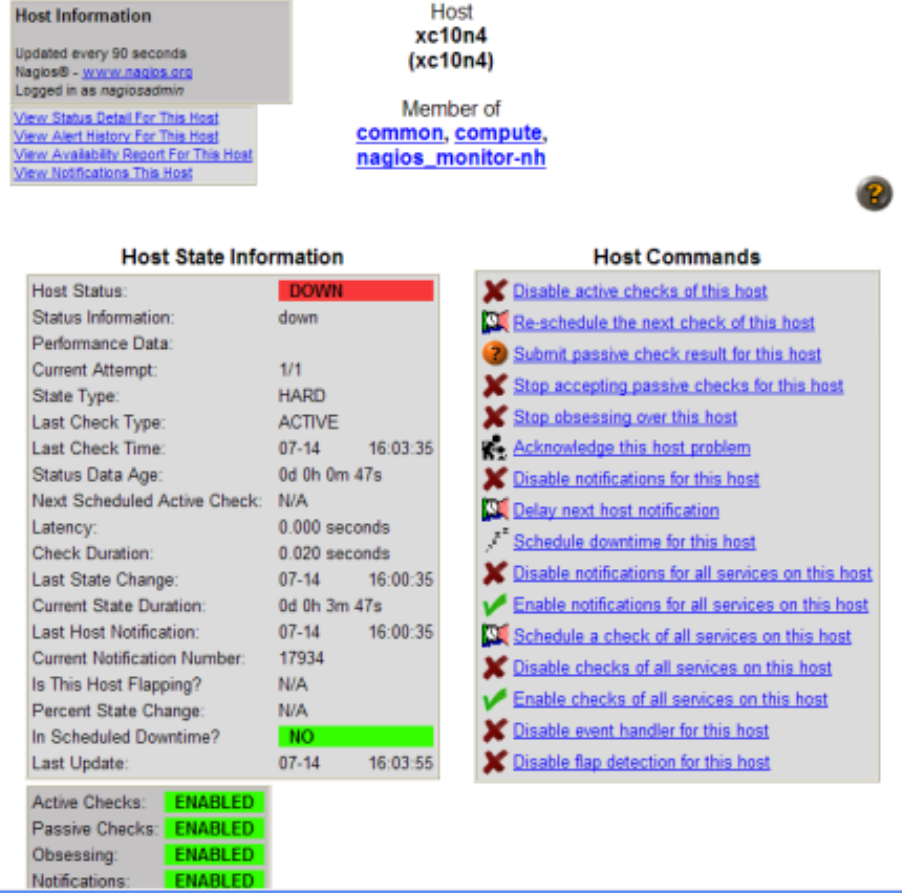

Figure 8-7 Nagios Host Information View
You can also use the Nagios report generator utility, nrg, to obtain an analysis of the Nagios
service (plug-in). Select the analyze option to display a two-column listing of service status. The
following is the command line entry for this feature:
# nrg --mode analyze
nh [Slurm Monitor - Critical] 'sinfo' reported problems
with nodes in some partitions, specifically, some
nodes may be marked with an '*' which indicates they
may be unresponsive to SLURM. Run 'sinfo' for more
information.
See nrg(8) for more information and examples of its use.
8.3 Adjusting the Nagios Configuration
You can adjust Nagios by stopping the nagios service, updating a configuration file, and
restarting the nagios service. This section describes the procedures for adjusting a Nagios
configuration. It addresses the following topics:
• “Stopping and Restarting Nagios” (page 115)
• “Updating the Nagios Configuration” (page 115)
