Overview of the Mixed HP-UX 11i v1/v2 vPars Environment Update Process
This section provides a high-level overview of the process for updating from a vPars A.03.xx
environment to a mixed HP-UX 11i v1/v2 vPars environment. For details and examples of the
update process see “The Update Process for Mixed HP-UX 11i v1/v2 vPars Environments: Step
by Step Details” (page 87).
Figure 4-1 shows an overview of the update process for migrating an HP-UX 11i v1 vPars
environment to a mixed HP-UX 11i v1/v2 vPars environment. For details see High-Level
Description of the Mixed HP-UX 11i v1/v2 vPars Environment Update Process (page 83) and
“The Update Process for Mixed HP-UX 11i v1/v2 vPars Environments: Step by Step Details”
(page 87).

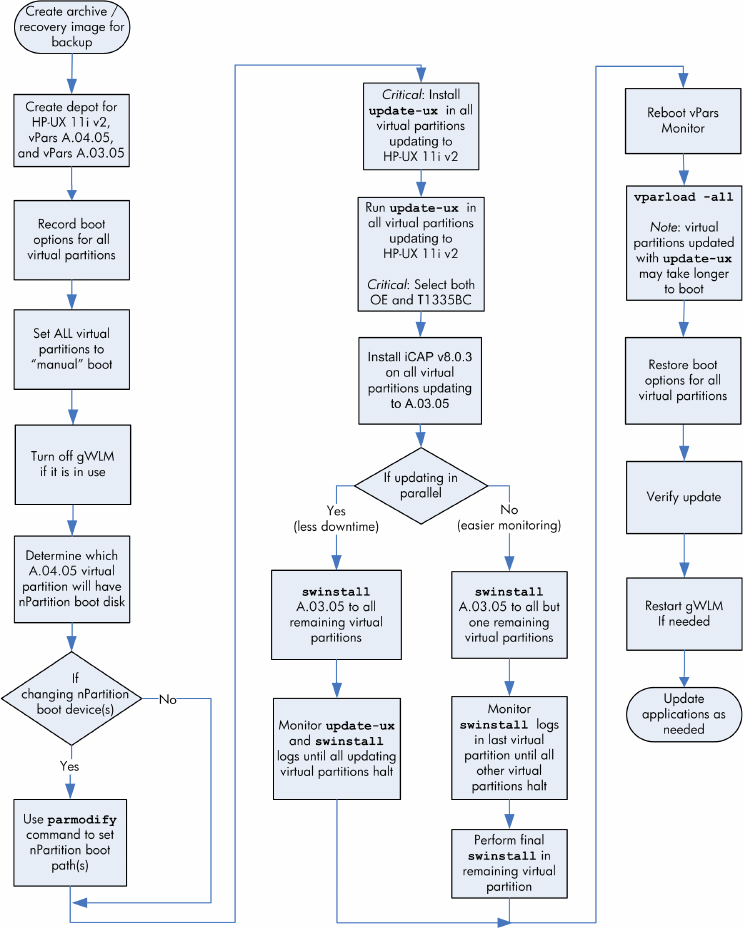

Figure 4-1 Overview of Update Process for Mixed HP-UX 11i v1/v2 vPars Environment
82 Installing, Updating, or Removing vPars and Upgrading Servers with vPars
