Software Distributor (SD-UX) Administration Guide HP-UX 11i v1, 11i v2, and 11i v3 (762797-001, March 2014)

1. When the Analysis is complete, the status for the target you selected should show Ready,
indicating no errors or warnings occurred during analysis. Select OK to proceed with the
installation.
The Install Window dialog (Figure 53: “Install Window dialog”,) appears, and the installation
starts automatically. When the status in the dialog changes to Completed, the installation
has successfully completed.

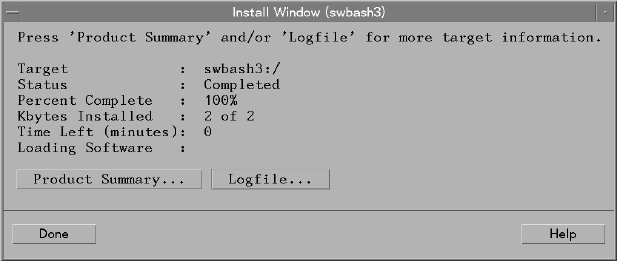

Figure 53 Install Window dialog
2. Select Done to exit the Install Window dialog. This returns you to the Target Selection Window.
3. Select File→ Exit to return to the Job Browser.
4. (Optional) Select another target for installation (i.e., Actions→Mark for Install).
Step VII: Monitor Results
When you exit the Target Selection Window, you return to the Job Browser. The icons in the job
list change to show the status of jobs. Different icons indicate different job status. (See “Job Browser
Icons” (page 104) for sample icons.)
Your job, labeled SDTESTJOB, should show with either a check mark or a ruler icon. To verify
status information for SDTESTJOB from the job list:
• Double click SDTESTJOB to invoke the Job Results dialog.
• Double click the target to show the detailed target log.
• Click OK to close each dialog after you have viewed it.
— or —
1. Select the SDTESTJOB icon.
2. Choose Actions→Show Job Description.... The Job Description dialog appears. This displays
all of the job attributes, the software and the target(s) involved.
3. (Optional) Select Show Options... to see what the job option settings.
4. (Optional) Select Show Results... to see the latest job status.
Step VIII: Remove Jobs
After you have run the tutorial, use the Job Browser to remove the example jobs:
1. Click on the SDTESTJOB icon.
2. Select Actions→Remove Job.... The Remove a Job dialog box appears.
3. Select OK.
— or —
128 Remote Operations Overview
