common default is the second part of the CP name. This alias can be used by
APPC applications to refer to the control point LU.
e. Node ID
The node ID consists of a total of 8 hexadecimal digits. The first 3 digits are
known as the block number. The remaining 5 digits are the node ID number.
The node ID is used when you are setting up a link for dependent traffic,
usually to a host. The ID you enter here must match the ID by which the node
is known within the VTAM configuration (in the case of a host).
The default value for this field is the common default 05FFFFFF, which is
often acceptable.
f. Description
You can optionally enter a description for the node.

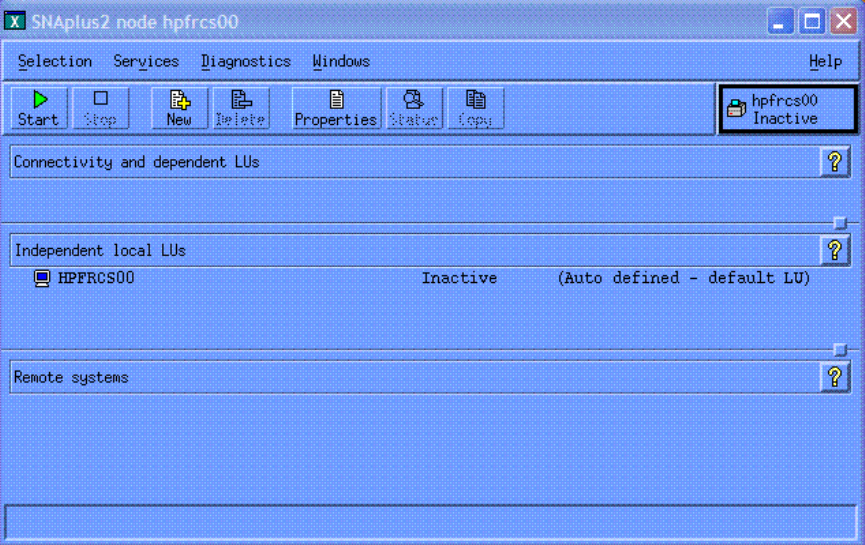

Once configured, the Node will appear as ‘
Inactive’
2. Enterprise Extender (HPR/IP) Port Configuration Dialog
Clicking on ‘New’ will bring the following panel:
