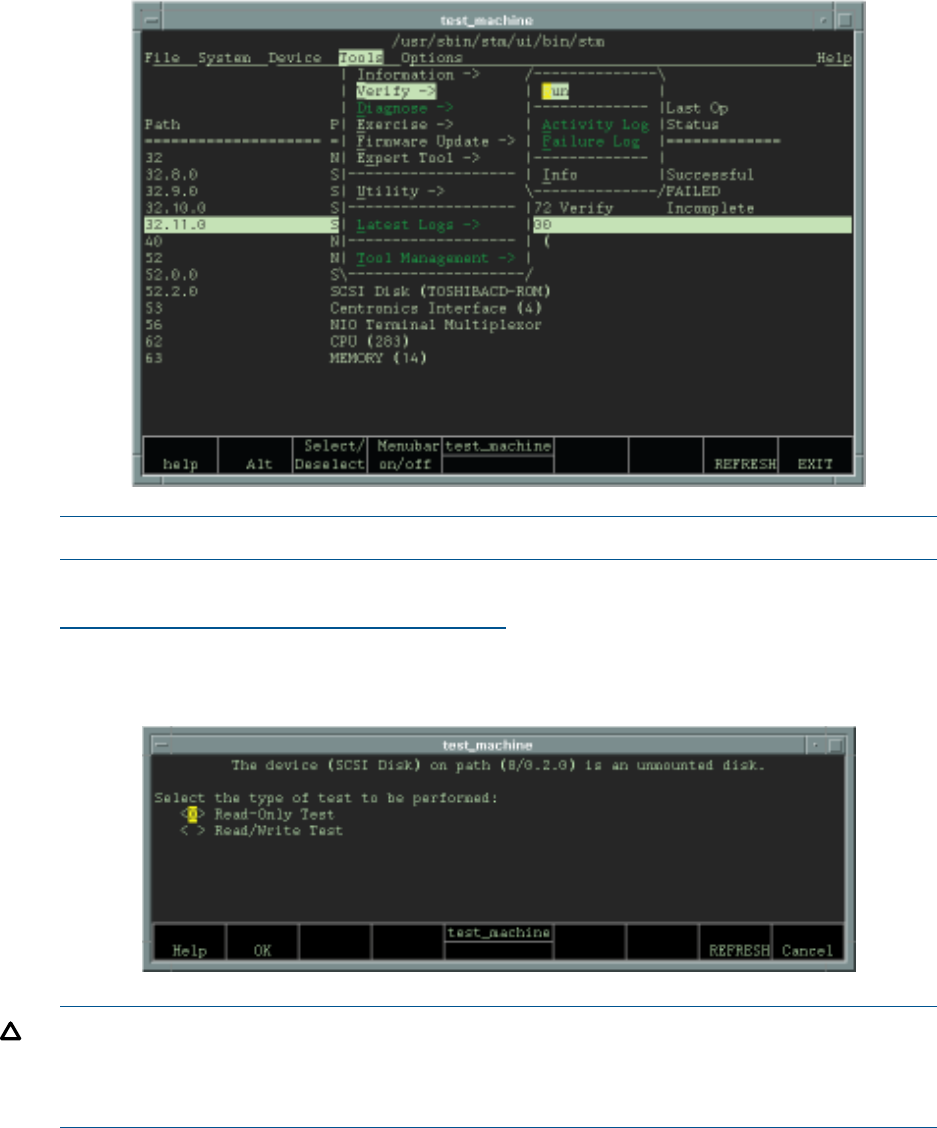

Figure 14 Running a Test (mstm Interface)
NOTE: Some support tools do not support all devices on every operating system.
For more information on the tools that support various devices, see the STM Online Help at:
http://www.hp.com/go/hpux-diagnostics-docs
4. Select the type of test you want to run, as shown in Figure 4-10.
Figure 15 Selecting the Type of Test (mstm Interface)
CAUTION: Selecting a Read-Write Test option can destroy the information on the disk. You
must select the Read-Write Test option to check if the writing operation is functioning properly
on new, unused disks. However, a Read-Only Test option only reads the information on the
disk. This test does not affect the information on the disk.
The Last Op Status field displays the status of the test, as shown in Figure 4-11.
Running Support Tools 55
