2. Select the device you want to test in the system map, as shown in Figure 4-2.

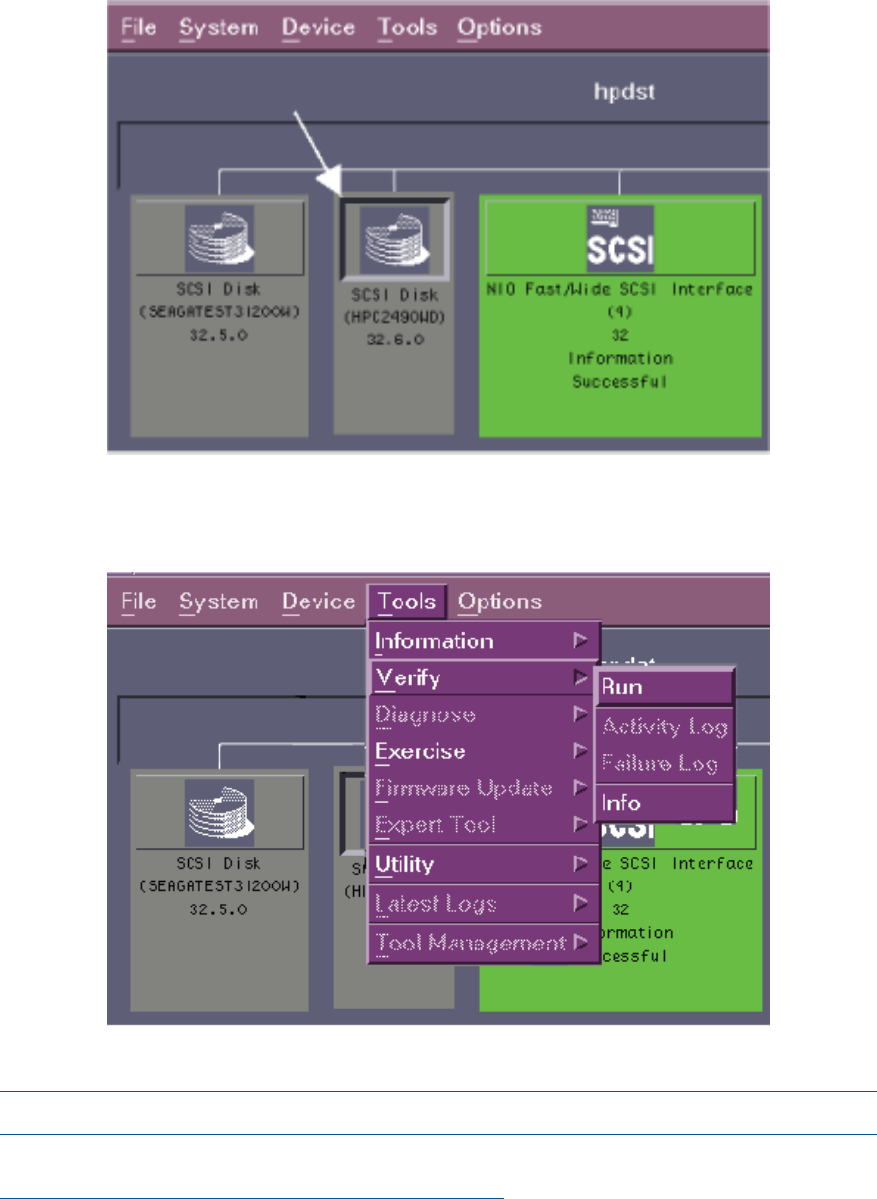

Figure 7 Selecting a Device (xstm Interface)
3. Select Tools->Tool name->Run to run a test, as shown in Figure 4-3.
Figure 8 Running a Test (xstm Interface)
NOTE: Some support tools do not support all devices on every operating system.
For more information on the tools that support various devices, see the STM Online Help at:
http://www.hp.com/go/hpux-diagnostics-docs
4. Select the type of test you want to run, as shown in the Figure 4-4.
