an IPv4 protocol type of 41, the same protocol type set when IPv6 packets tunnel inside
IPv4 frames.
“6to4” Topology Example
“6to4” topology consists of: one or more “6to4” hosts in a “6to4” domain; at least one
“6to4” router in the domain that has at least one IPv4 connection to the Internet; and a
“6to4” relay router that is used to connect to a native IPv6 domain.
Nodes can perform the role of the “6to4” router. Host configuration continues to be
supported, as was the case in base (default) HP-UX 11i v2.

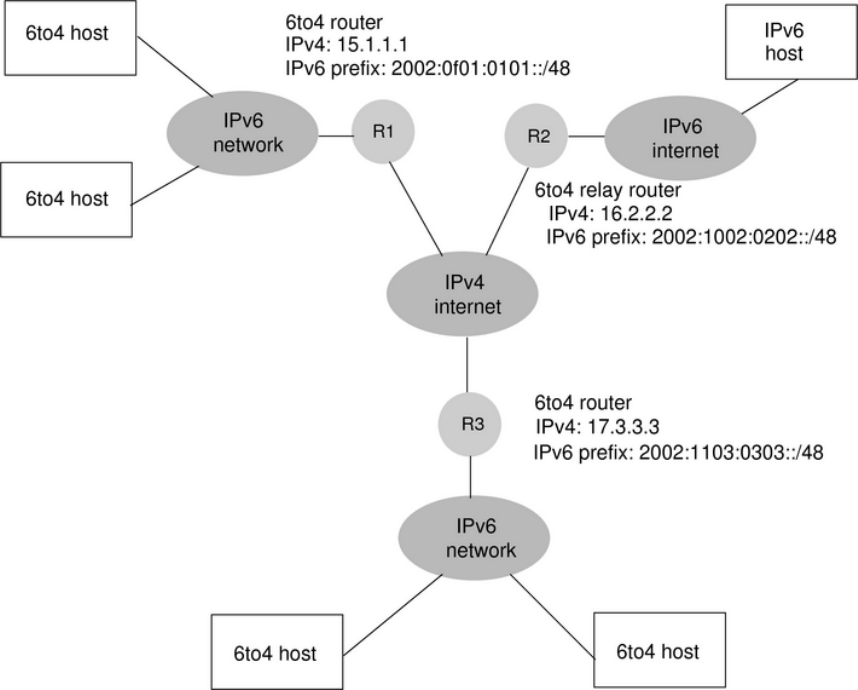

Figure 13 “6to4” Topology Example
As shown in the “6to4” topology example of Figure 13:
6to4 host: An IPv6 host that has at least one “6to4” address configured. The "6to4"
address is autoconfigured using the "6to4" prefix advertised by the "6to4" router. It has
