HP-UX TN3270 Users Guide, March 1998

Chapter 2 43
The TN3270 Emulation Program User Interface
Dialog Boxes
End of section
List Boxes
A list box contains a list of items, as shown in Figure 2-8, “TN3270
Emulation Program Showing a List Box.”

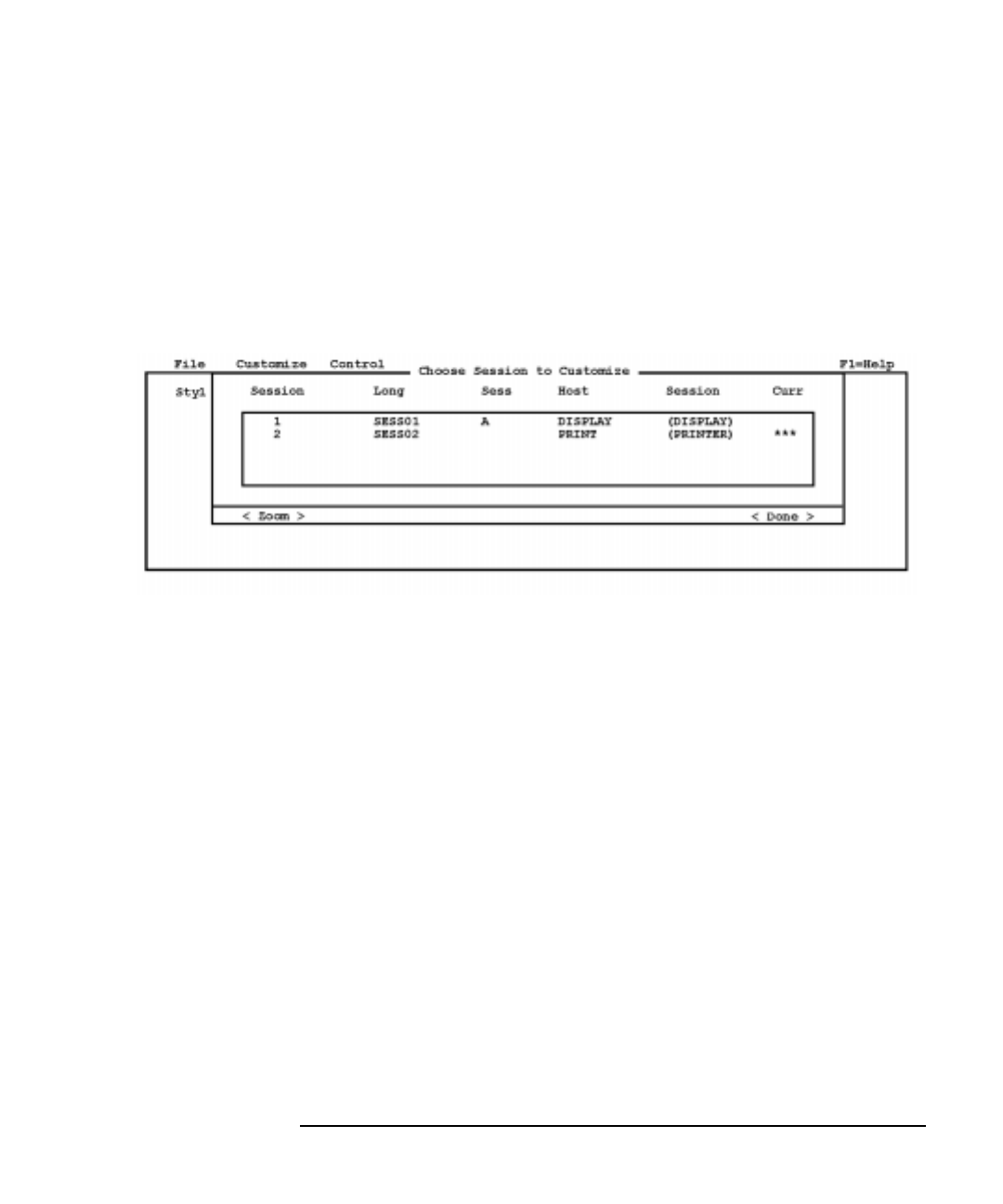

Figure 2-8 TN3270 Emulation Program Showing a List Box
In general, you choose one item from the list to view or to specify further
information about that particular item. For example, if you select
SESS02 from the list box shown above and then use the <Zoom> push
button, the next dialog enables you to specify details of how that
particular 3270 session is used.
To choose an item from the list box, do the following:
Step 1. Use the Tab key or the accelerator key shown in the list box title to move
to the list box. (For more information, see “Accelerator Keys”.) One item
in the list box (usually the first) is shown in reverse video, indicating
that it is currently selected.
Step 2. Do one of the following:
• Use the Up and Down cursor keys to position the cursor on the item you
want.
• Press the key corresponding to the first character of the line that
represents the item you want to select. If more than one item begins
with this character, keep pressing the key until the cursor reaches
