HP-UX TN3270 Users Guide, March 1998

Chapter 2 41
The TN3270 Emulation Program User Interface
Dialog Boxes

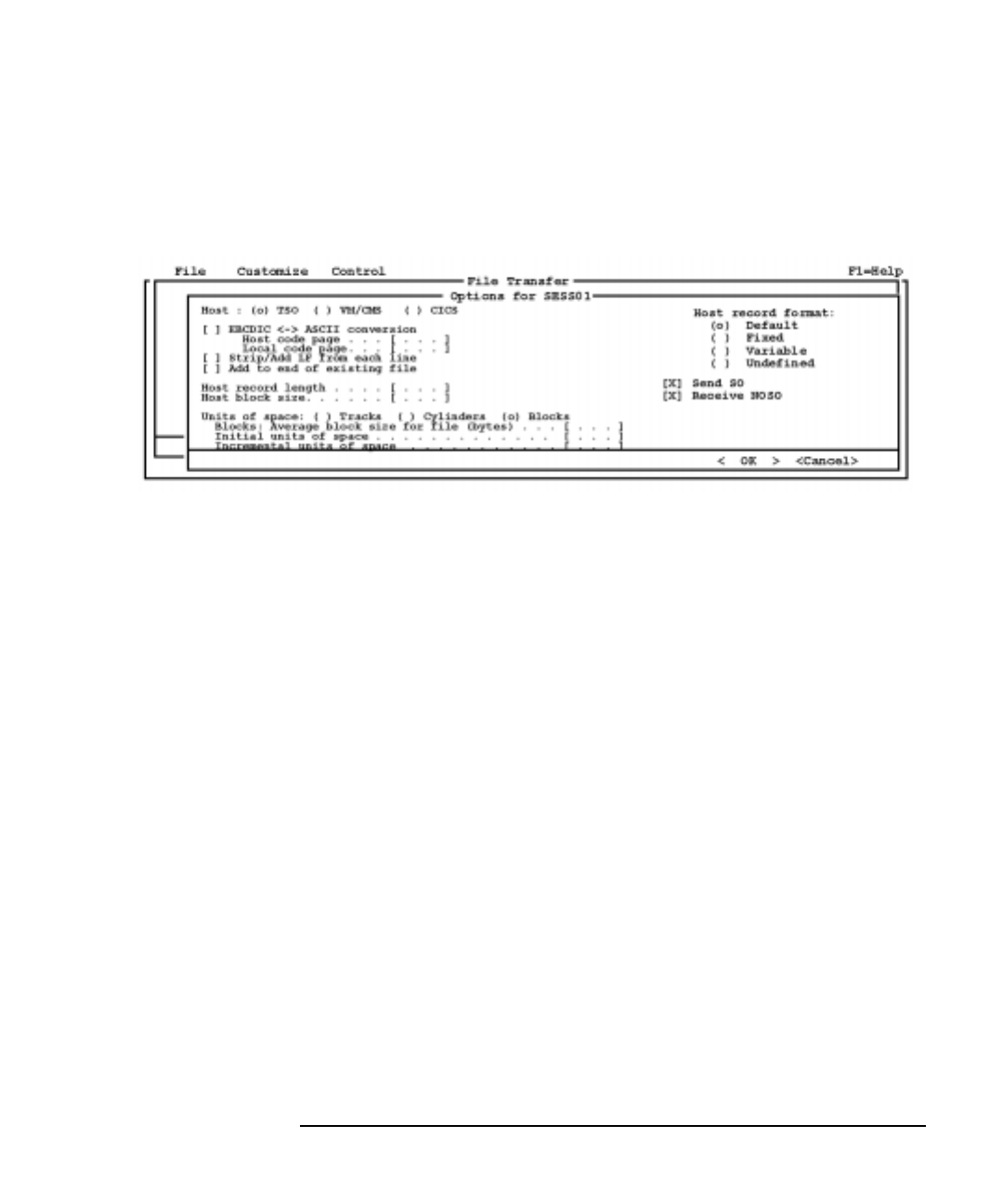

Figure 2-6, “TN3270 Emulation Program Showing Radio Groups,” shows
three radio groups: “Host,” “Host record format,” and “Units of space.”
Figure 2-6 TN3270 Emulation Program Showing Radio Groups
A circle within the parentheses indicates that the radio button is
selected. When you select a button, all other buttons within the group
are automatically deselected.
In the “Host radio” group in Figure 2-6, “TN3270 Emulation Program
Showing Radio Groups,” the TSO radio button is selected, and the other
options are not selected.
To choose a radio button from the keyboard, do the following:
Step 1. Press Tab to move to the radio group.
Step 2. Use the cursor keys to move to the button you want and select it. The
Down or Right cursor keys move forwards within the group, and the Up or
Left cursor keys move backwards.
Motif After moving to the button you want with the cursor keys, press Space to
select it. In the Motif interface, moving the cursor to a radio button does
not automatically select it.
You can also click with the mouse on a radio button. This automatically
selects that radio button and deselects all the other buttons in the group.
End of section
You can also use the accelerator key to move to a radio button. This
automatically selects that radio button and deselects all the other
buttons in the group. For more information, see “Accelerator Keys”.
