HP-UX TN3270 Users Guide, March 1998

38 Chapter 2
The TN3270 Emulation Program User Interface
Dialog Boxes
• List boxes
Push Buttons
Push buttons are used to select an action. In Figure 2-4, “TN3270
Emulation Screen Showing Push Buttons,” <Zoom> and <Done> are
push buttons.

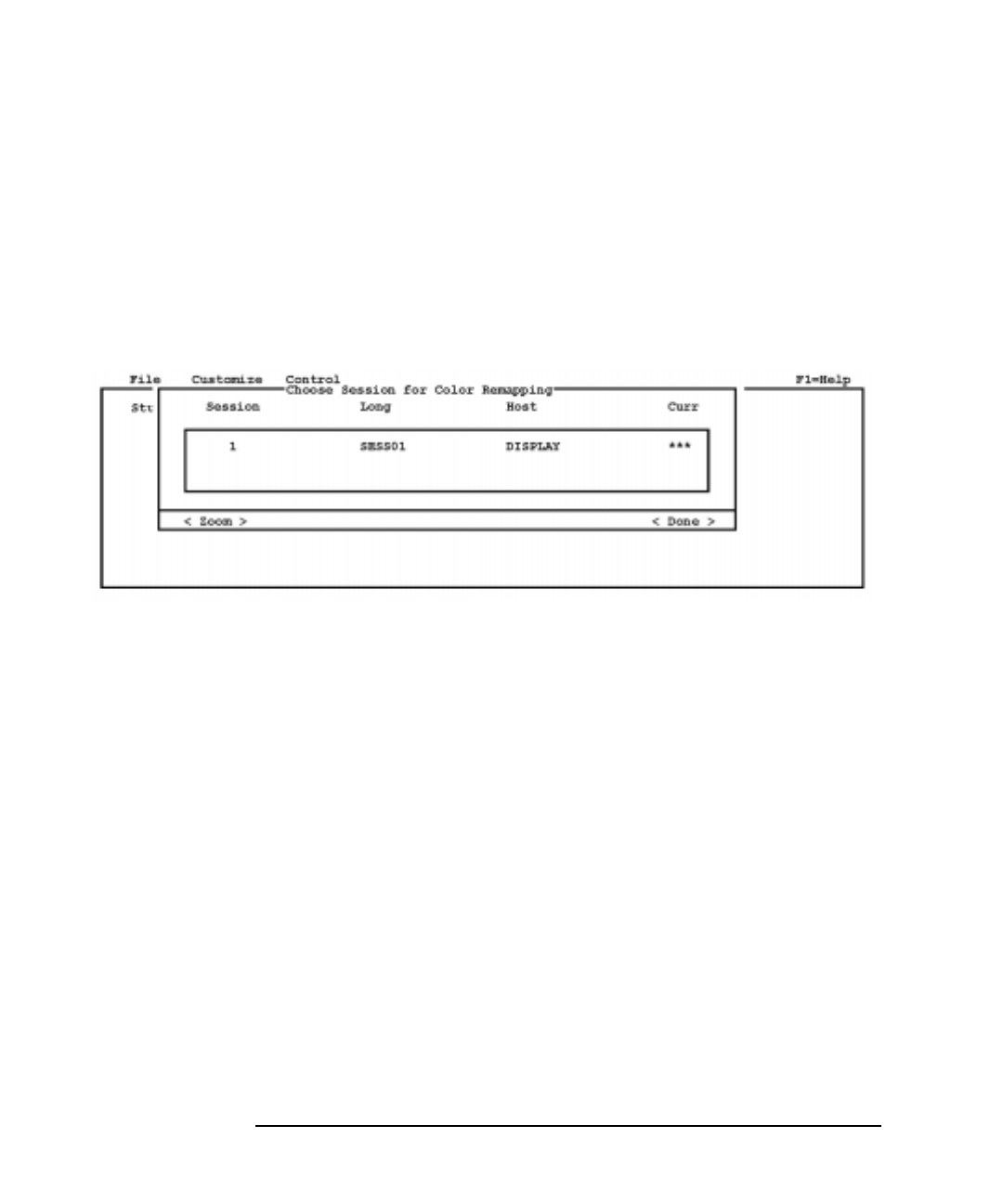

Figure 2-4 TN3270 Emulation Screen Showing Push Buttons
Choose a push button to cause an action to occur. In the TN3270
emulation program, push buttons are shown as a name enclosed in angle
brackets displayed at the bottom of dialog boxes.
To choose a push button, do one of the following:
• Use the Tab key to move the cursor to the push button (this highlights
the angle brackets of this push button), and press Enter.
• Use the accelerator key of the push button. (For more information
about accelerator keys, see “Accelerator Keys”.)
Motif • Click with the mouse on the push button.
End of section
Each dialog box has one push button with highlighted angle brackets
(the default push button). To choose the highlighted push button, press
the Enter key from anywhere in the dialog box.
