Chapter 2 35
The TN3270 Emulation Program User Interface
Menus
Alternatively, press Enter to activate the reverse-video selector and
highlight the first menu name. Use the Right and Left cursor keys to select
the name of the menu you want. Then use either the Up or Down cursor
keys or Enter to pull down the menu.
The menu appears below its name on the menu bar, as shown in Figure
2-2, “TN3270 Emulation Screen Showing the File Menu.”

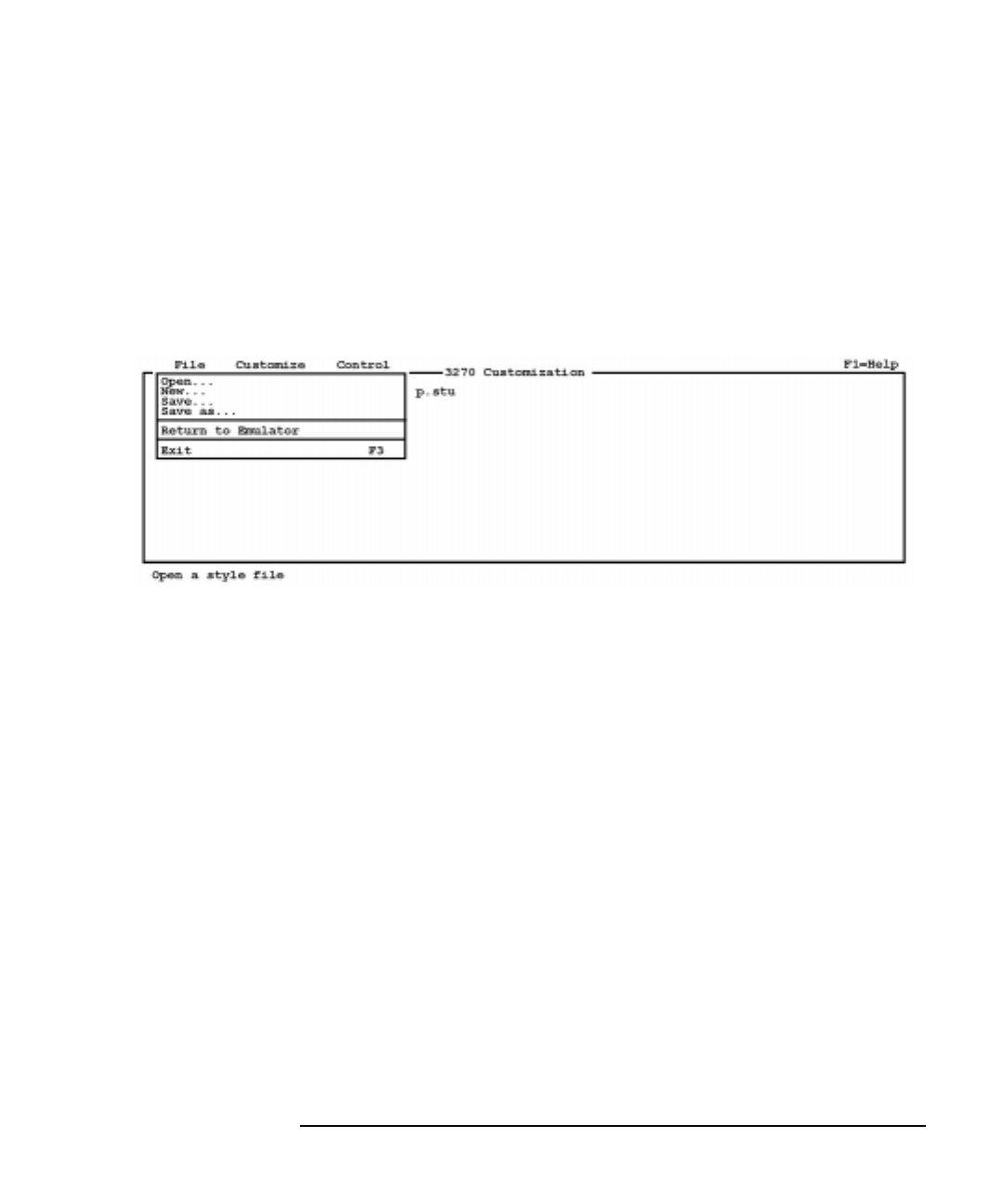

Figure 2-2 TN3270 Emulation Screen Showing the File Menu
For details on how to use the menus, see “Choosing a Menu Option”.
Choosing a Menu Option
Each menu contains several menu options (also called menu items) that
indicate the functions you can access from the menu. One menu option
appears in reverse video, showing that this is the currently selected
option. The bottom line of the screen displays information about this
option.
One or more options in the menu may appear in lighter type, indicating
that they cannot currently be selected. For more information, see
“Nonselectable Items”.
To choose a particular option from a menu, do one of the following:
• If you are using the reverse-video selector, use the Up and Down cursor
keys to move the reverse-video selection to the menu option you want,
and then press Enter.
• Press the accelerator key (shown by a highlighted letter) of the menu
option you want.
