The TN3270 Emulation Program User Interface
Menus
Menus
Menus are accessed from a menu bar (also called an action bar), which is
the starting point for the TN3270 emulation program user interface.
Figure 2-1, “TN3270 Emulation Screen Showing Menu Bar,” shows the
TN3270 emulation program's main screen with the menu bar at the top.

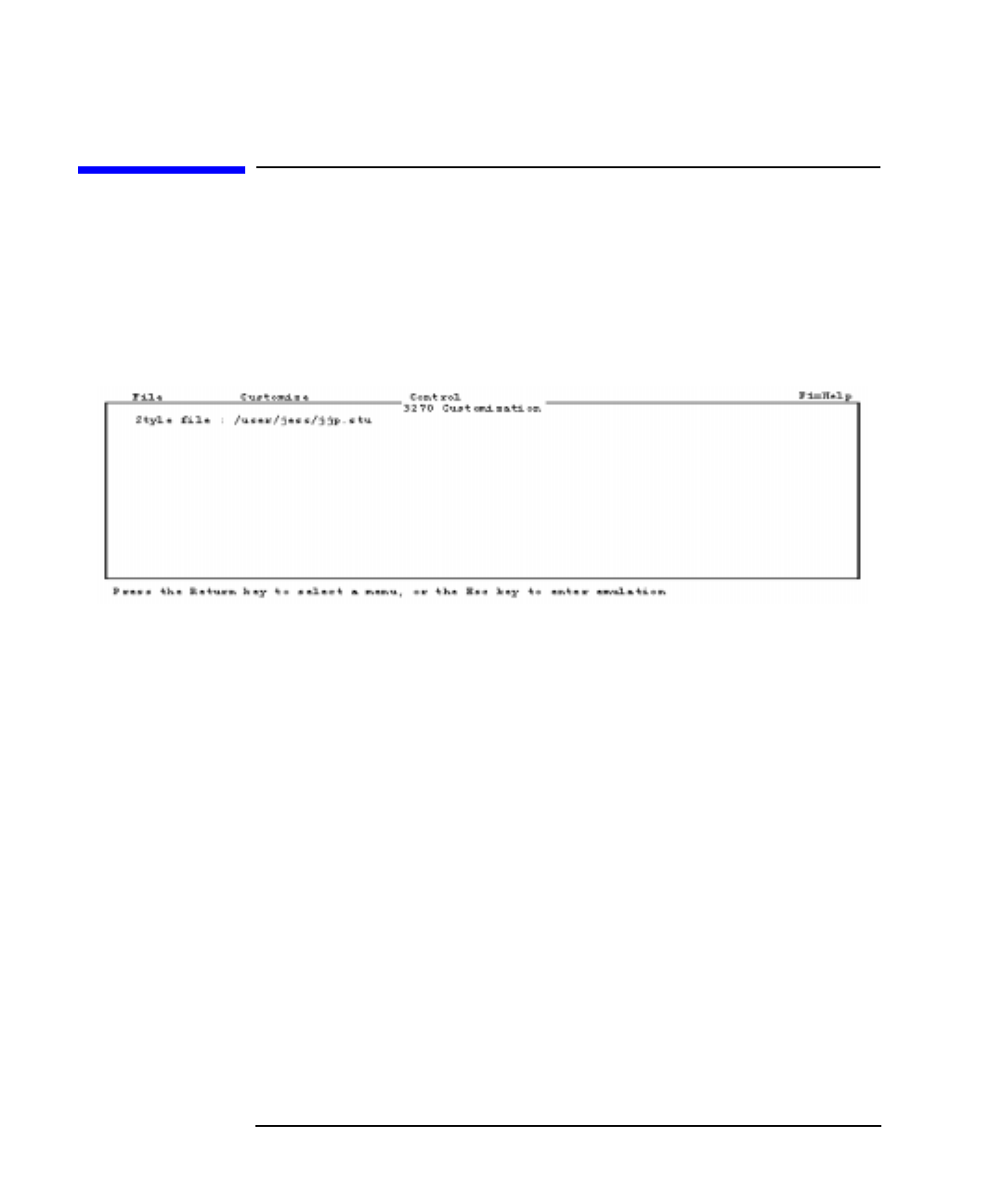

Figure 2-1 TN3270 Emulation Screen Showing Menu Bar
The menu bar contains several menus (also called pull-downs or
pull-down menus), each of which has one letter (the accelerator key)
highlighted. When you select an option from the menu bar, the
corresponding menu is displayed. One of the menu names may appear in
reverse video, indicating that it is currently selected.
At the top right of the screen, F1=Help is displayed as a reminder that
help screens are always available by pressing F1.
Choosing a Menu from the Menu Bar
Motif You can choose a menu using either a mouse or the keyboard. Use the
mouse to click on the menu you want, or use the following instructions
for using the keyboard.
End of section
To choose a particular menu from the menu bar, press the highlighted
letter (accelerator key) from the name of the menu you want.
