Chapter 6 201
Customizing 3270 Emulation
Customizing Display Colors

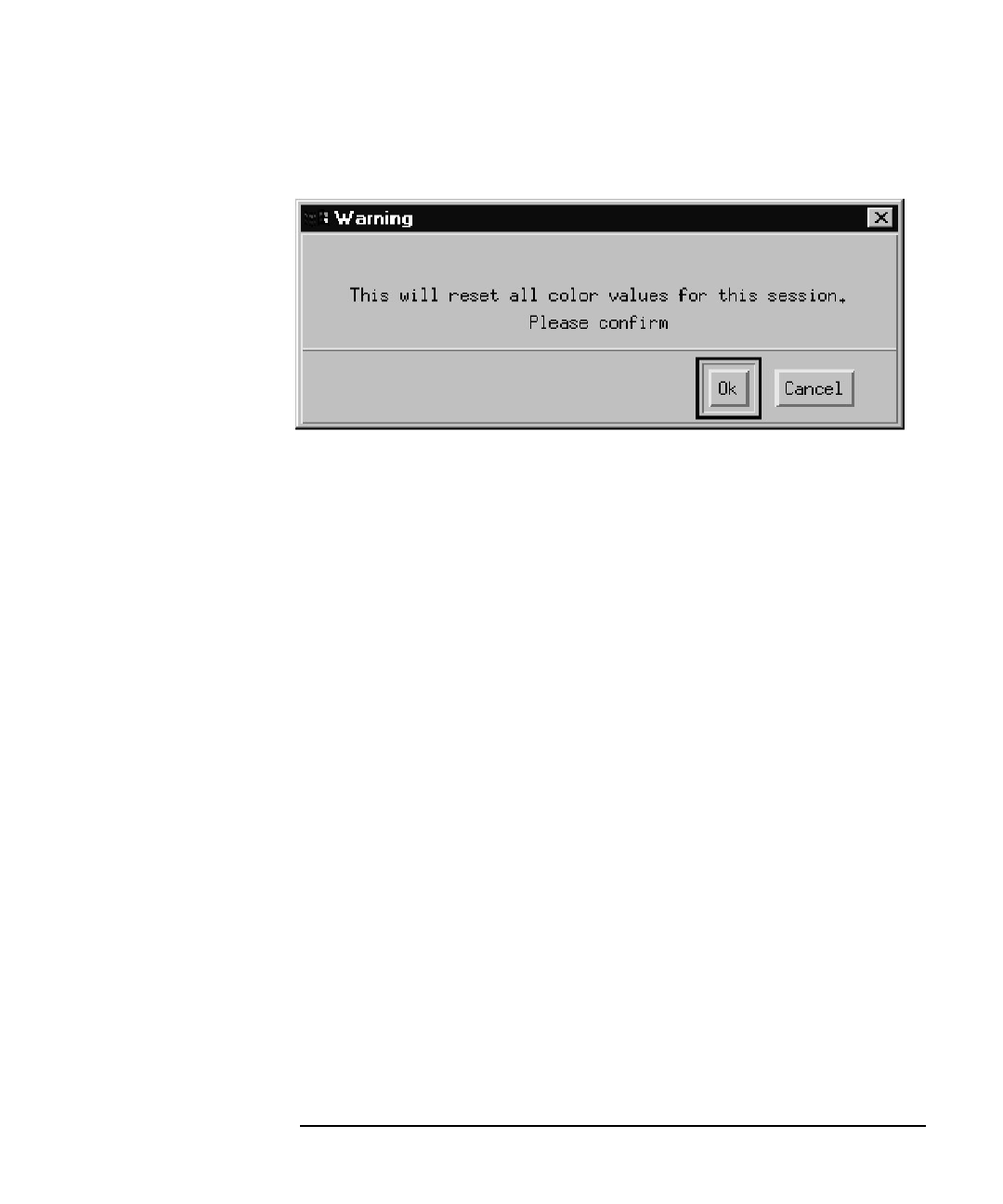

Figure 6-14 Warning Dialog Box
Copying Colors from Another Session
To copy the color mapping from another session, use the following
procedure:
Step 1. In the Choose Colors for SESSnn dialog box, choose <Copy>. The dialog
box shown in Figure 6-15, “Copy Session Colors Dialog Box,” is displayed.
Step 2. From the list box, select a session whose color mapping you want to copy.
Step 3. Choose <OK> or <Cancel>. The Choose Colors for SESSnn dialog box
reappears. The color mapping is now the same as for the session you
specified in Step 2.
Step 4. Make any changes you like to the new color mapping, or leave it as
copied.
Step 5. Choose <OK> to accept the copied color map, with any subsequent
modifications, or choose <Cancel> to return to the color map that was in
effect when you opened the dialog box.
