178 Chapter 6
Customizing 3270 Emulation
Opening, Creating, and Saving Style Files

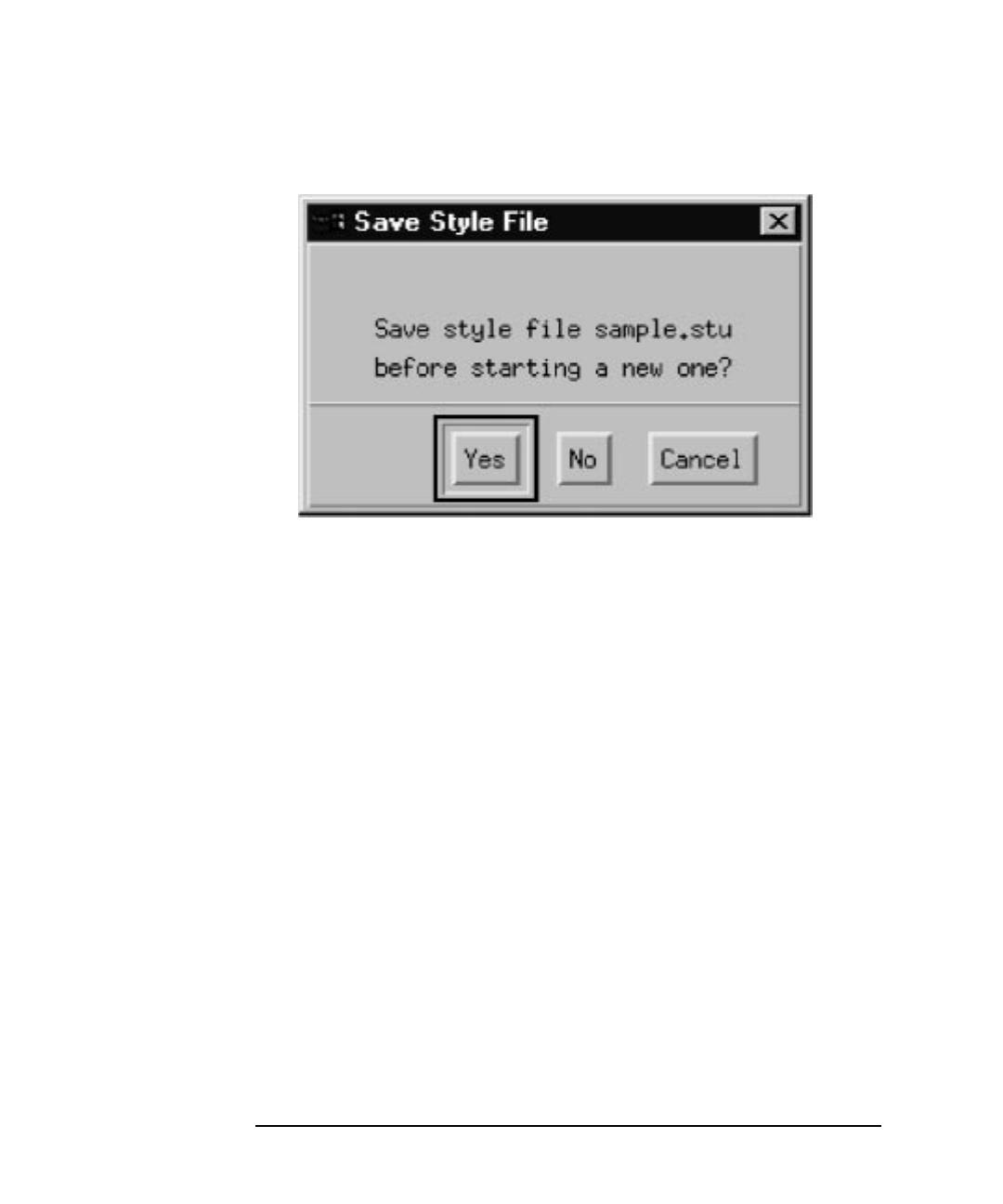

Figure 6-3 Save Style File Dialog Box
You have the following options:
• To save the changes and then open the new file, choose <Yes>.
• To open the new file without saving the changes, choose <No>.
• To continue using the current style file, choose <Cancel>.
Creating a New Style File
Follow these steps to create a style file:
Step 1. From the File menu, choose New. The message Style file : new
file is displayed on the main screen. (You will specify a name for the file
when you save it.)
Step 2. Use the menu options under the Customize menu to customize your
3270 emulation, and then follow the directions under “Saving a Style
File”, to save the options you set in a style file. For instructions for
customizing 3270 emulation options, see “Setting Customization
Options”.
If you change the current style file and then attempt to create a style file
before you save the changes, the Save Style File dialog box is displayed,
as in Figure 6-3, “Save Style File Dialog Box.” You have the same options
to save the changes, abandon the changes, or continue with the current
style file.
