Chapter 6 177
Customizing 3270 Emulation
Opening, Creating, and Saving Style Files
Step 4. In the Open Style File dialog box, enter the name of the style file you
want to open. Do not include the .stu extension; it is added
automatically. If the file is not in the current directory, also enter the
correct directory path.
If the program cannot find the style file you specified, an error message is
displayed. Choose <Exit Message> to acknowledge the message, verify
the name of your style file, and reenter it.
Step 5. Choose <OK> to open the specified file.

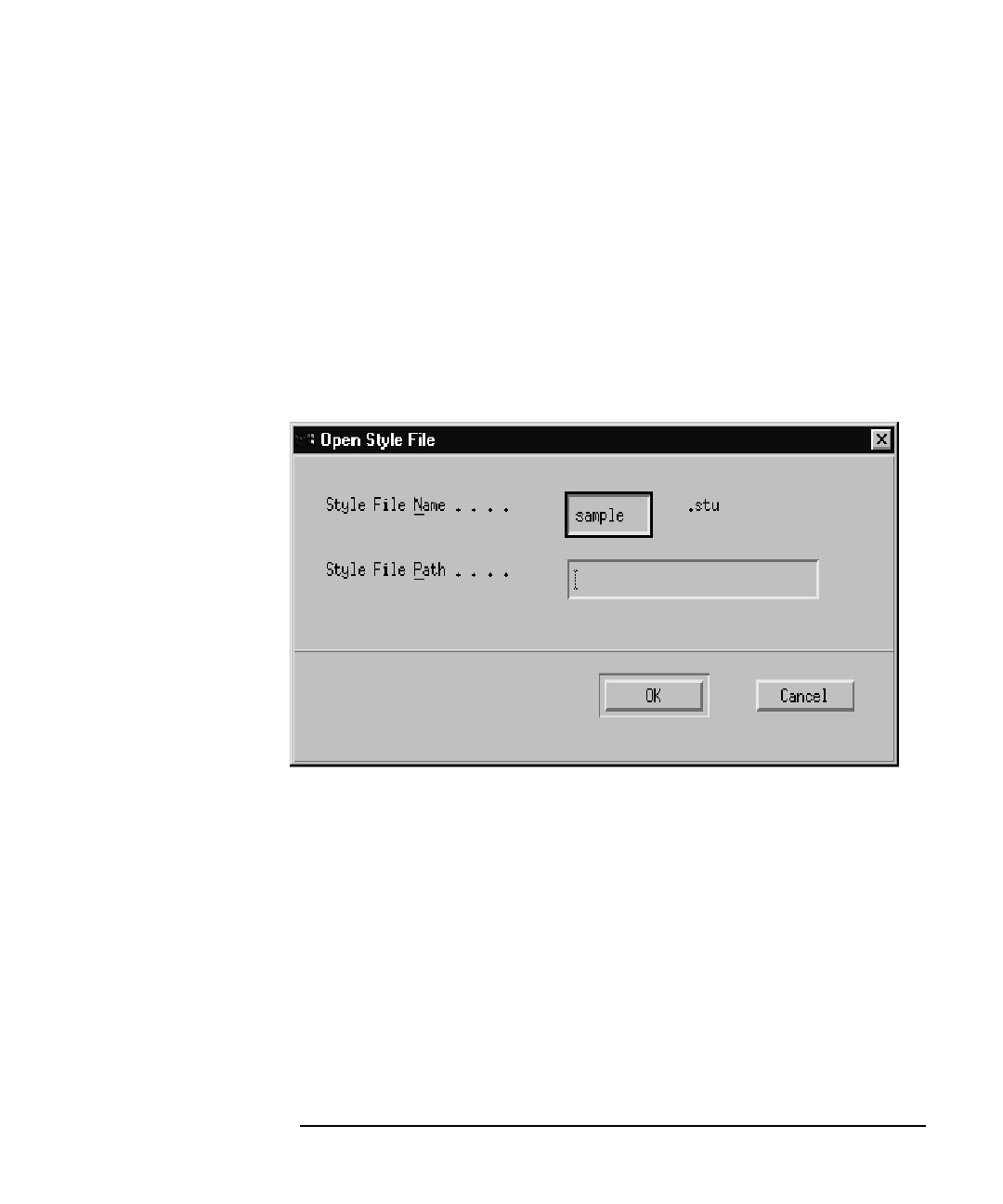

Figure 6-2 Open Style File Dialog Box
Session IDs specified in a style file take effect only if the 3270 emulation
program is started using that style file (either by default or by specifying
it on the command line). If you open a style file from the File menu, and
the file includes session IDs that are not in the style file that was used
when starting the TN3270 emulation program, the new session IDs do
not take effect immediately. A message is displayed, reminding you to
stop the TN3270 emulation program and restart it using this style file if
you need to use the session IDs. (For more information about session
IDs, see “Customizing Display Sessions”.)
If you change the current style file and attempt to open another file
before you save the changes, the dialog box shown in Figure 6-3, “Save
Style File Dialog Box,” is displayed.
