HP-UX TN3270 Users Guide, March 1998

Chapter 5 151
Transferring Files
Transferring Files Using the Menu Interface
Step 2. Enter appropriate information in the fields of the Transfer VM/CMS File
on SESSnn dialog box.
Step 3. Choose <OK> to transfer the file. A message appears as shown in the
Figure 5-6, “VM/CMS File Transfer in Progress,” giving details on the file
transfer.
Step 4. Choose <Exit Message> to acknowledge this message.
Step 5. To monitor progress of the file transfer, view the File Transfer dialog box
and read the information in the Status, Transfer Status, and Messages
for File Transfer with SESSnn fields. To see an example of the File
Transfer dialog box, see Figure 5-1, “File Transfer Dialog Box.”

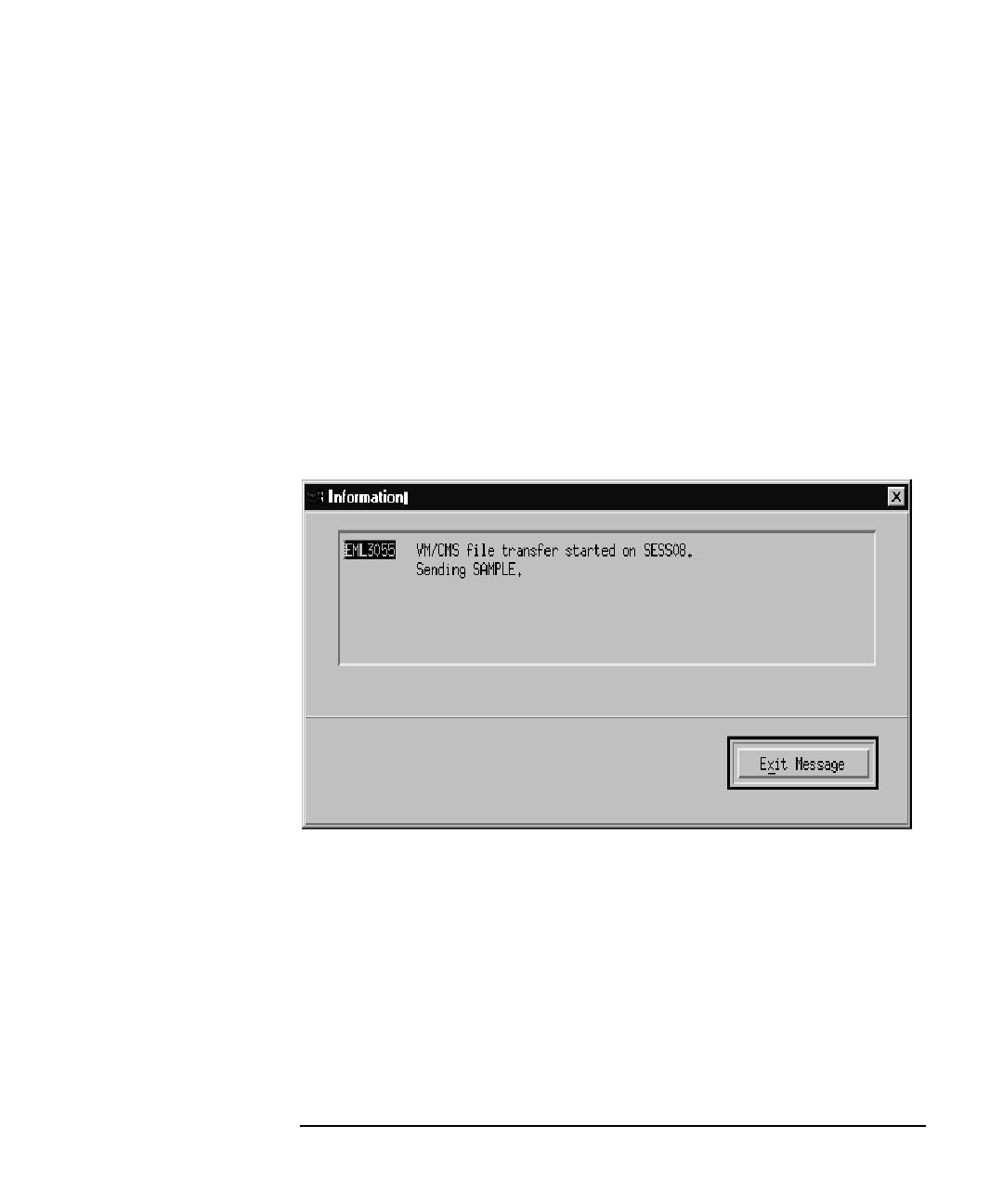

Figure 5-6 VM/CMS File Transfer in Progress
Transferring Files with a CICS Host
To start a file transfer, highlight a session in the File Transfer dialog box,
and choose <Start transfer>. The dialog box shown in Figure 5-7,
“Transfer CICS File on SESSnn Dialog Box,” is displayed.
