Chapter 5 149
Transferring Files
Transferring Files Using the Menu Interface
Transferring Files with a VM/CMS Host
To start a file transfer, highlight a session in the File Transfer dialog box
and choose <Start transfer>. The dialog box shown in Figure 5-5,
“Transfer VM/CMS on SESSnn Dialog Box,” is displayed.
You cannot communicate with the host on this session, or transfer
another file, while the file transfer is in progress; the Wait for File
Transfer message X ( ) FT is displayed on the status line until the
transfer has finished. For more information about status line messages,
see Appendix B, “Status Line Information.”

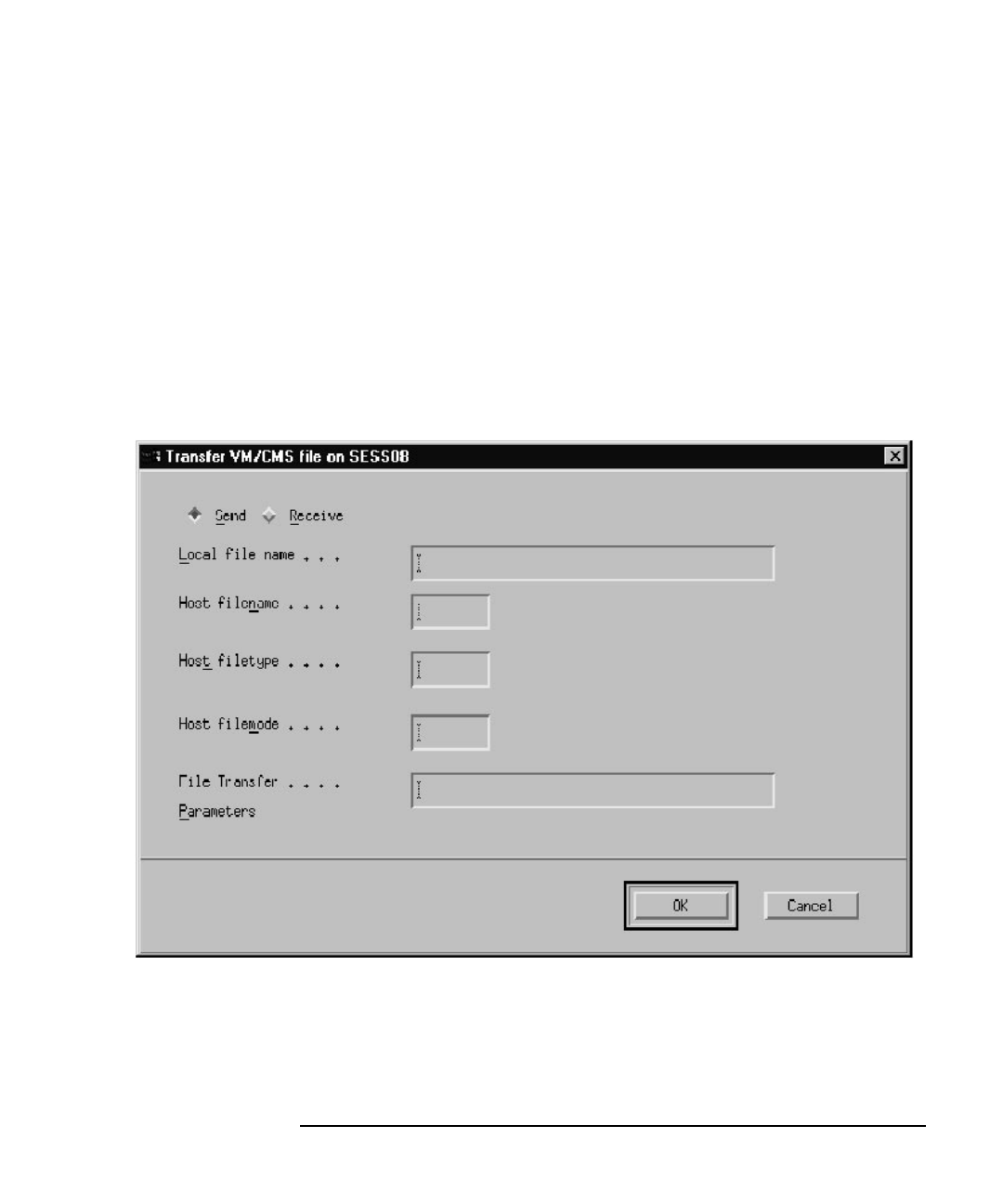

Figure 5-5 Transfer VM/CMS on SESSnn Dialog Box
Transfer VM/CMS File on SESSnn Dialog Box Fields
The following list describes the fields of the Transfer VM/CMS File on
SESSnn dialog box:
