Chapter 4 113
Controlling 3270 Emulation
Controlling Printer Sessions

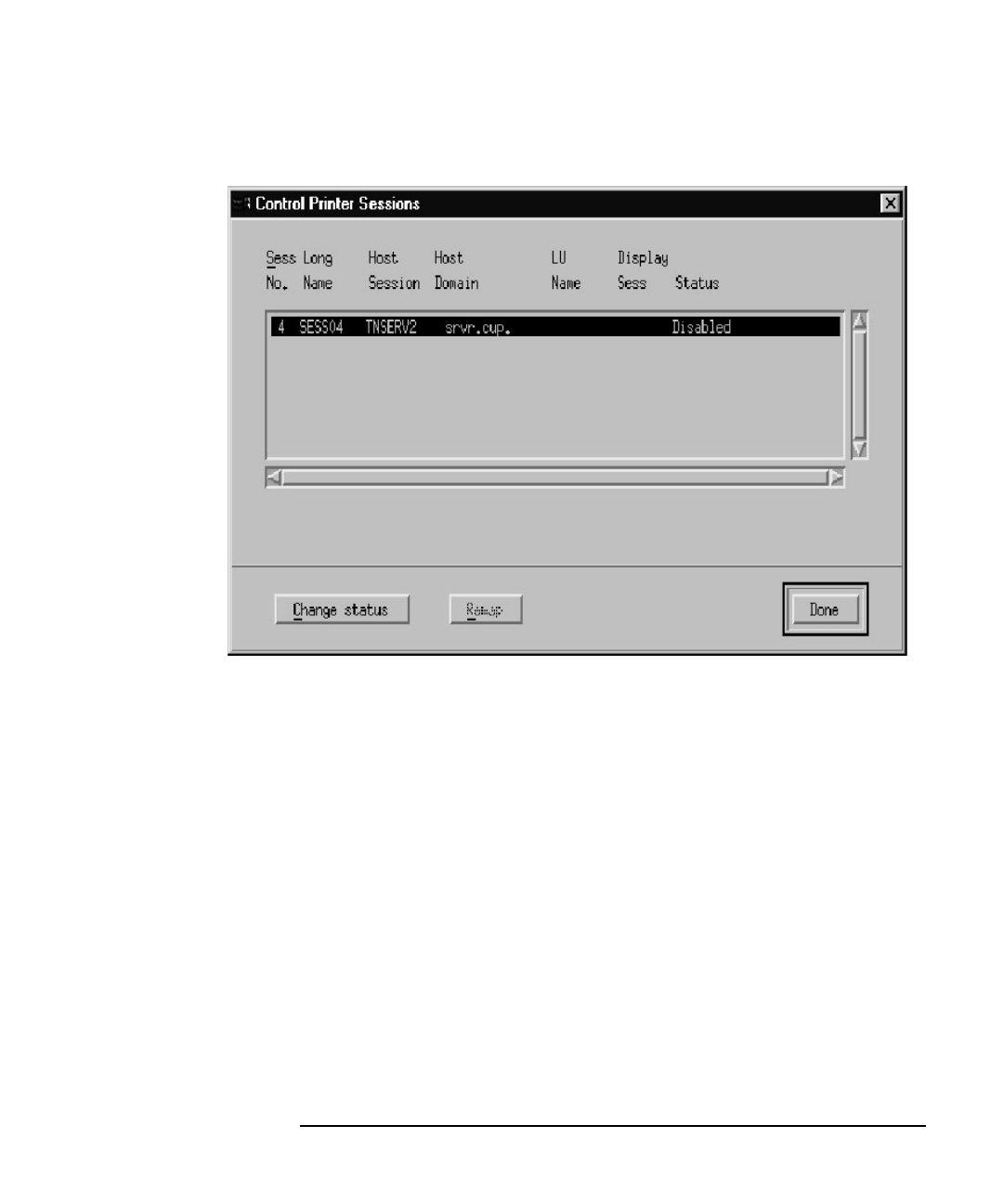

Figure 4-4 Control Printer Sessions Dialog Box
The following list describes the information contained in the Control
Printer Sessions dialog box.
Long Name
The unique identifier for each session. For instructions
for changing this option, see “Customizing Printer
Sessions”.
Host Session
The name of the host session record in the
configuration file.
Host Domain
The host symbolic domain name of the TCP/IP host
used by the session. If the session is disabled, this field
is blank. This field may be truncated on the right, if
necessary.
This name may correspond to a host computer that
supports direct TN3270 access over TCP/IP, or to a
communications product (such as the main SNAplus2
