110 Chapter 4
Controlling 3270 Emulation
Controlling Display Sessions
End of section
To make a session current, use the following procedure:
Step 1. Select an enabled session in the list box.
Step 2. Choose <Make Current>. Three asterisks (***) mark the session as
current.
If you disable the current session, the next enabled display session (with
a screen model that can be displayed) becomes the current session
automatically. If no display sessions with suitable screen models are
enabled, no session is current.
Disabling a Session
To disable an enabled session, highlight the session in the Control
Display Sessions dialog box and choose <Change Status>. Status
changes to Disabled.
If you try to disable an active display session, the dialog box shown in
Figure 4-3, “Session Is in Use Dialog Box,” is displayed.

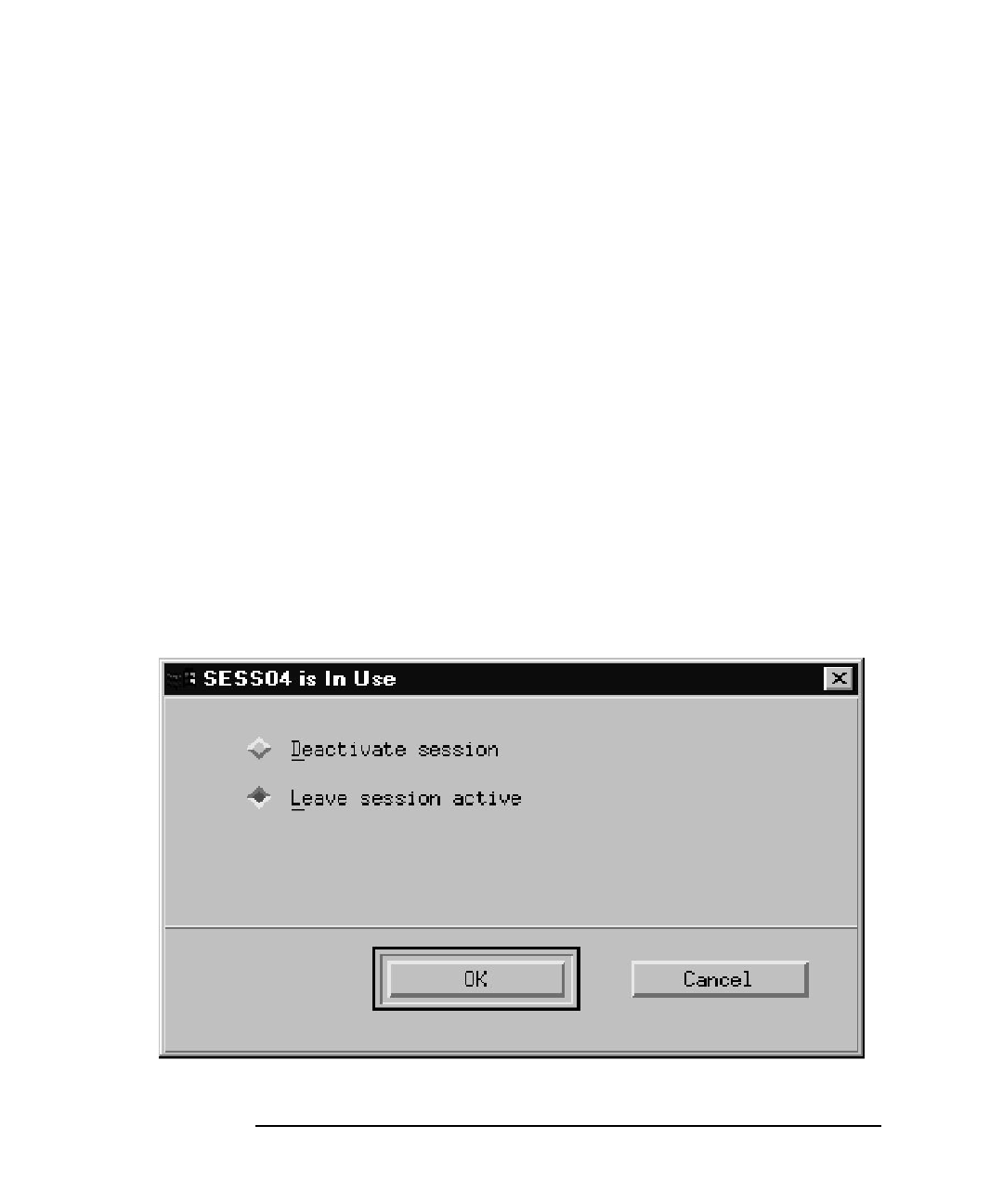

Figure 4-3 Session Is in Use Dialog Box
To respond to this dialog box, complete the following steps:
