Chapter 4 105
Controlling 3270 Emulation
Controlling Display Sessions
Controlling Display Sessions
To control display sessions, from the main screen, pull down the
Control menu and select Display Sessions.

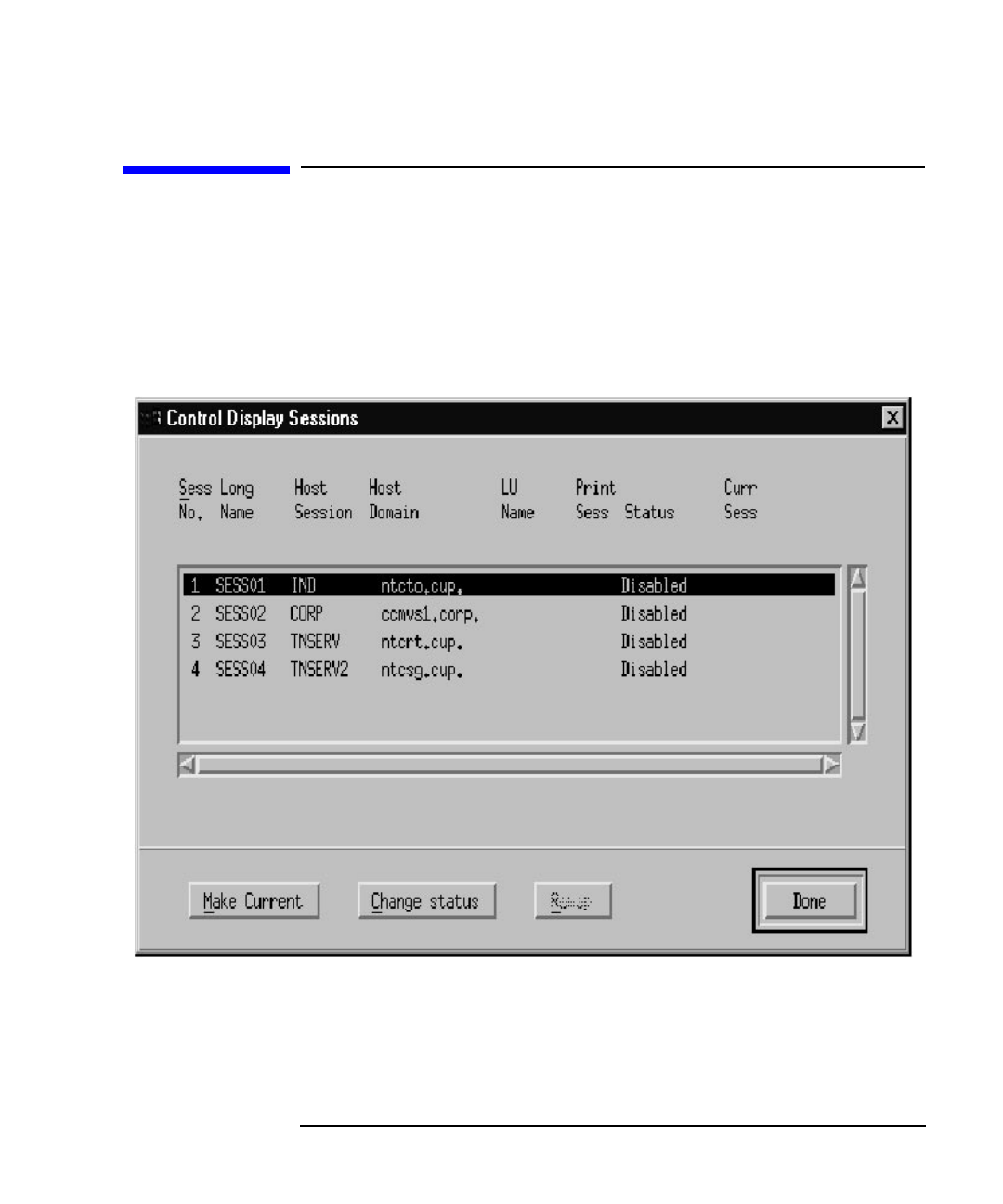

The dialog box shown in Figure 4-2, “Control Display Sessions Dialog
Box,” is displayed.
Figure 4-2 Control Display Sessions Dialog Box
The list box lists all the display sessions configured for you; you may
have up to ten sessions configured. The following list describes the
information contained in the Control Display Sessions dialog box.
Session Number
The number assigned to the session.
