HP StoreEver MSL6480 Tape Library Module Replacement (QU625-96304, June 2013)
Table Of Contents
- Overview
- Saving the configuration settings
- Unlocking the magazine
- Using the OCP
- Using the manual release
- Removing the tape cartridges
- Powering off the library
- Removing the module cables
- Removing the tape drives
- Removing the power supplies
- Removing the base or expansion module controller
- Removing the chassis fan assembly and drive power boards
- Removing the empty module from the rack
- Moving library cover plates
- Installing the replacement module into the rack
- Replacing the module components and cables
- Verifying the library configuration
- Getting help
- Documentation feedback
3. If the module is upside down, gently return it to
its normal position.

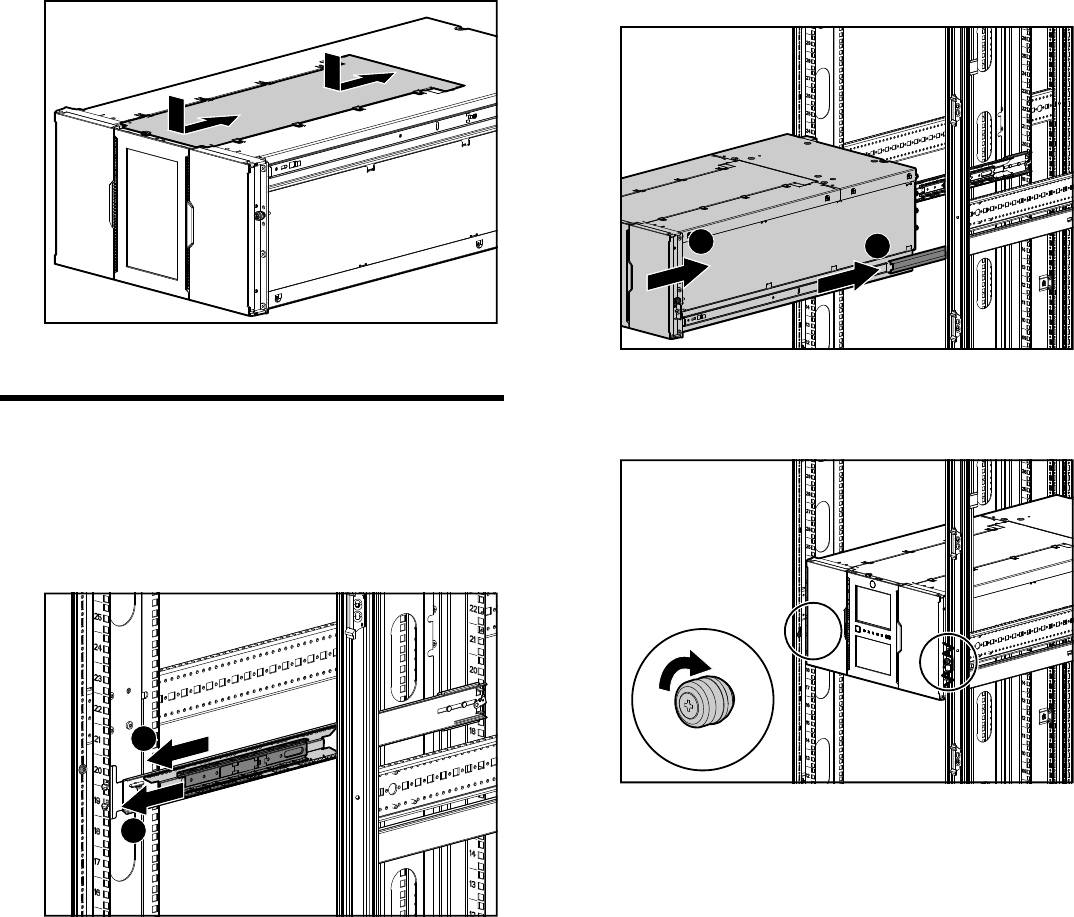

Installing the replacement module into the
rack
1. Extend the middle rails until they lock into place.
Move the sliding assembly to the front of the
middle rails.
1
2
2. Slide the inner rails, which are attached to the
module, into the middle rails. Slide the module
into the rack.
1
2
3. Use your fingers to tighten the captive thumbscrew
on each side of the module.
Page 6
