HP StoreEver Enterprise Service Libarary G3 Six-slot LTO Magazine Assembly Installation and Replacement Instructions (QN998-96106, May 2013)

Table Of Contents

HP StoreEver Enterprise

Systems Library (ESL) G3 Tape

Library

Six-slot LTO Magazine

Assembly Installation and

Replacement Instructions

Abstract

This document describes how to remove and replace an

existing or install a new six-slot LTO magazine assembly in

an ESL G3 Tape Library.

Printed in the US

*QN998-96106*

HP Part Number: QN998-96106

Published: May 2013

Edition: 2

CAUTION: Parts can be damaged by

electrostatic discharge. Keep parts in their

containers until needed. Make sure that you are

properly grounded when touching static sensitive

components.

NOTE: To ensure proper operation of tape

cartridges, pickers, and drives, make sure your

hands are dirt- and grease-free before handling

tape cartridges.

Inspect the contents of the kit

The kit contains one six-slot LTO magazine assembly.

Prepare the library

1. On the operator panel, press the Robotics Enabled

button to turn off power to the picker assembly

and return it to the home position.

2. Open the access (front) door.

3. Remove any cartridges from the magazine, noting

their original location for return to the same

location in the replacement magazine.

Remove the existing magazine

(replacement only)

Magazines must be removed in a top-down order. For

example, to remove a magazine in column 3, section

4, you must first remove the magazines located in

column 3, sections 1–3.

1. Magazines to be removed to access other magazines, then

re-installed

2. Magazines to be removed and replaced

Page 1

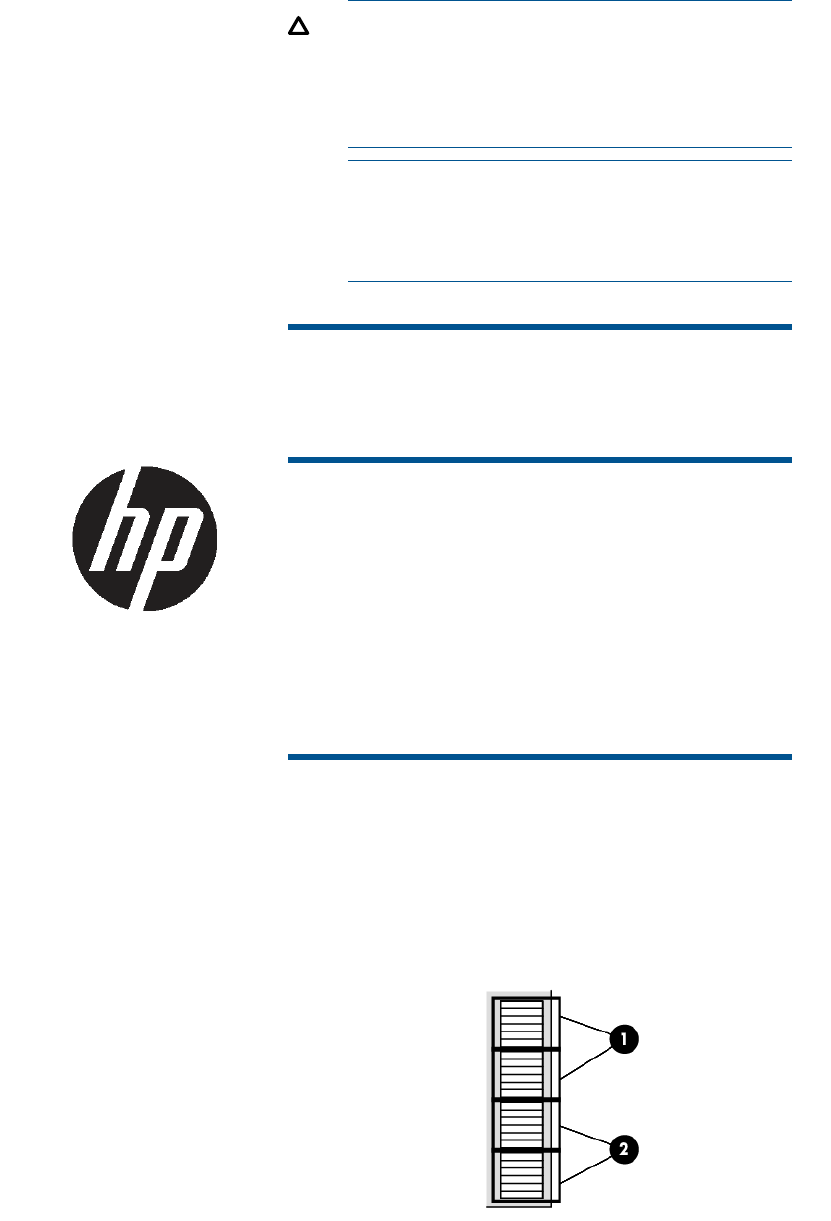

PAGE 1
HP StoreEver Enterprise Systems Library (ESL) G3 Tape Library CAUTION: Parts can be damaged by electrostatic discharge. Keep parts in their containers until needed. Make sure that you are properly grounded when touching static sensitive components. Six-slot LTO Magazine Assembly Installation and Replacement Instructions NOTE: To ensure proper operation of tape cartridges, pickers, and drives, make sure your hands are dirt- and grease-free before handling tape cartridges.
PAGE 2
1. 2. To remove magazines in the IE load port, pull each magazine out horizontally. To remove all other magazines, push each magazine upwards until it unsnaps, then pull it out. 3. 4. 5. Make sure the barcode label of the magazine is clean. Clean it if necessary. Replace any cartridges in the same slots from which they were removed. Close the access door. NOTE: All magazines in the column above this magazine must be removed first. Prepare the library for use 1. Install the new magazine 1. 2.
