HP XP P9000 Storage Replcation Adapter 2.0 Administrative Guide

Primary and secondary conceptual configurations for RMSRA20

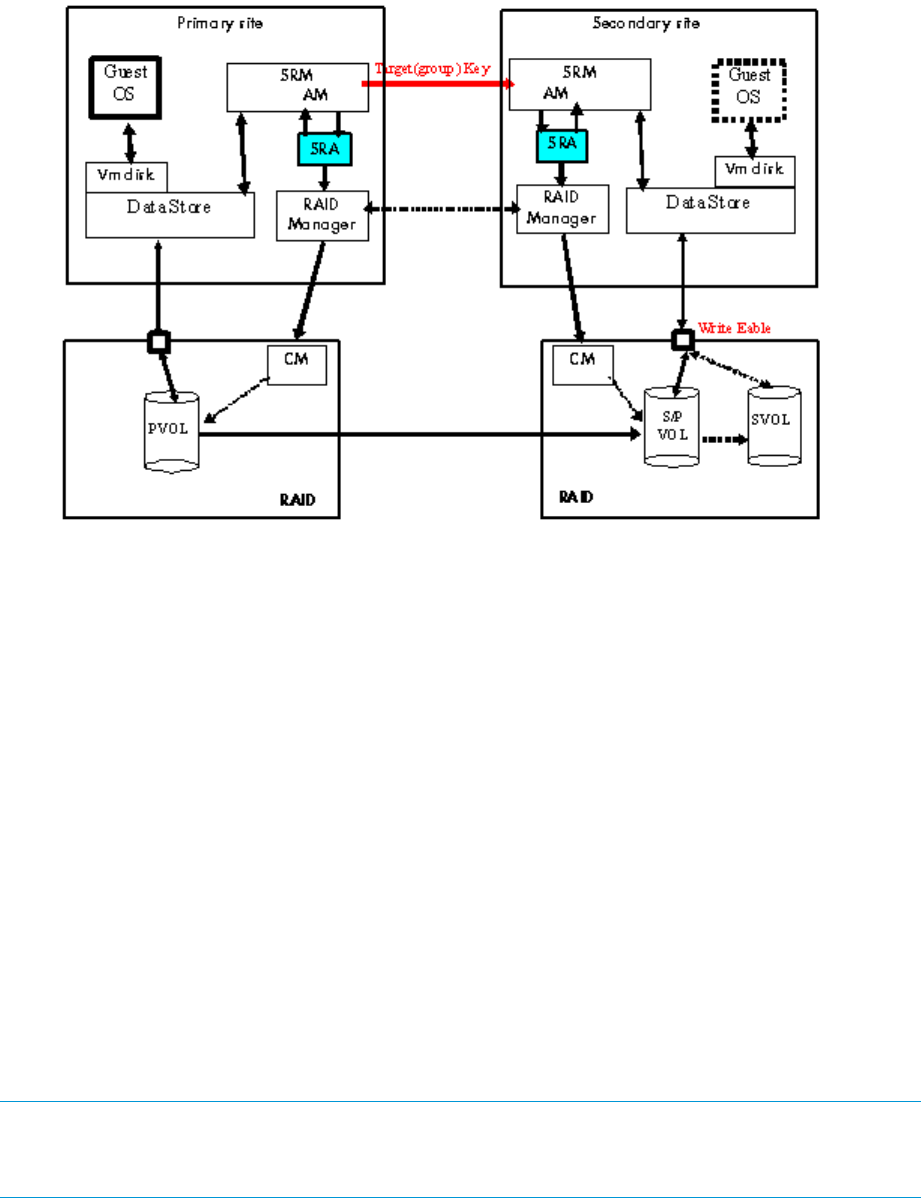

Figure 1 (page 7) is a conceptual diagram that shows the SRM configuration used by the RAID
Manager for implementing SRA2.0.
Figure 1 Primary and seconday configurations for SRA 2.0
Coordination process of SRM and SRA 2.0
Discovery of Arrays and Devices
During SRM configuration, RM SRA is called to discover available arrays and replicated devices.
The following information is discovered:
• Storage Array IDs: Serial#
• Model: 60-03-20/FF
• Product: XP_RAID
• PeerArrays: Peer Array Serial#
• Replicated groups and Names: Group ID and Name (for example, URA)
• Target Group Keys: Group name
• Replicated Devices and Ids: LDEV# and LUN WWN (for example,
60:06:0E:80:05:FA:0F:00:00:00:FA:0F:00:00:00:08)
• Target Device Keys: LDEV#
• SnapShot for Target group Keys: SnapShot id, each SnapShot LDEV# and LUN WWN
• SnapShot for Target Device Keys: SnapShot LDEV# and LUN WWN
NOTE: Remote SVOL should be included to the groups on RAID Manager horcm.conf, and
are replicated between protected and recovery HP P9000 disk arrays using CA Sync/CA
Async/CAJ.
RMSRA20 configurations 7
