Configuring SRM (AM) to communicate with RMSRA20
Adding Array Manager
1. Configure the Array Manager on protection.
When the protected and recovery SRM servers have been paired, click add an Array Manager
to configure the Array Manager to use RMSRA20 (see Figure 18 (page 30)).

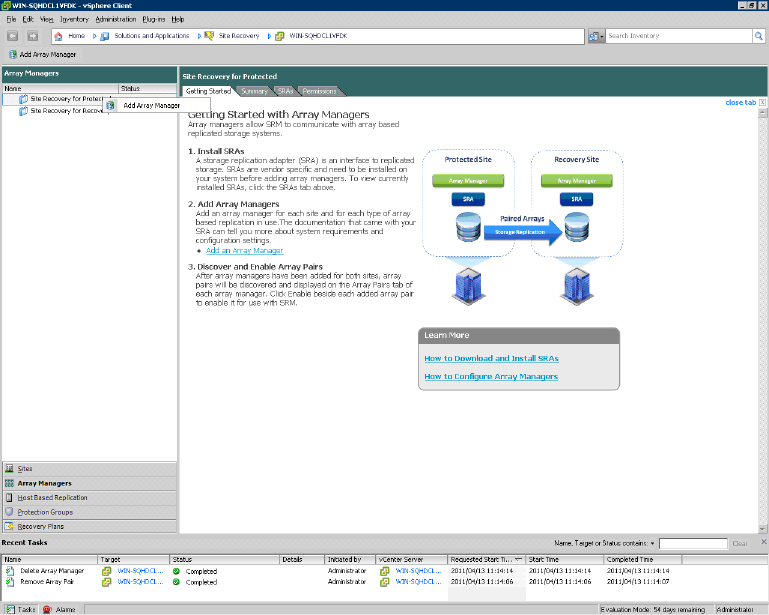

Figure 18 Configure Array Manager
2. Add RMSRA20 to the protection side Array Manager.
Define the appropriate name as Display Name, and Select RAID Manager Storage Replication
Adapter from the SRA Type that is connected to RMSRA20 (see Figure 19 (page 31)).
30 Configuring SRM and HP XP P9000 disk array
