NOTE: Sharing VMDK disks is not supported.
VMware ESX Server 3.0x

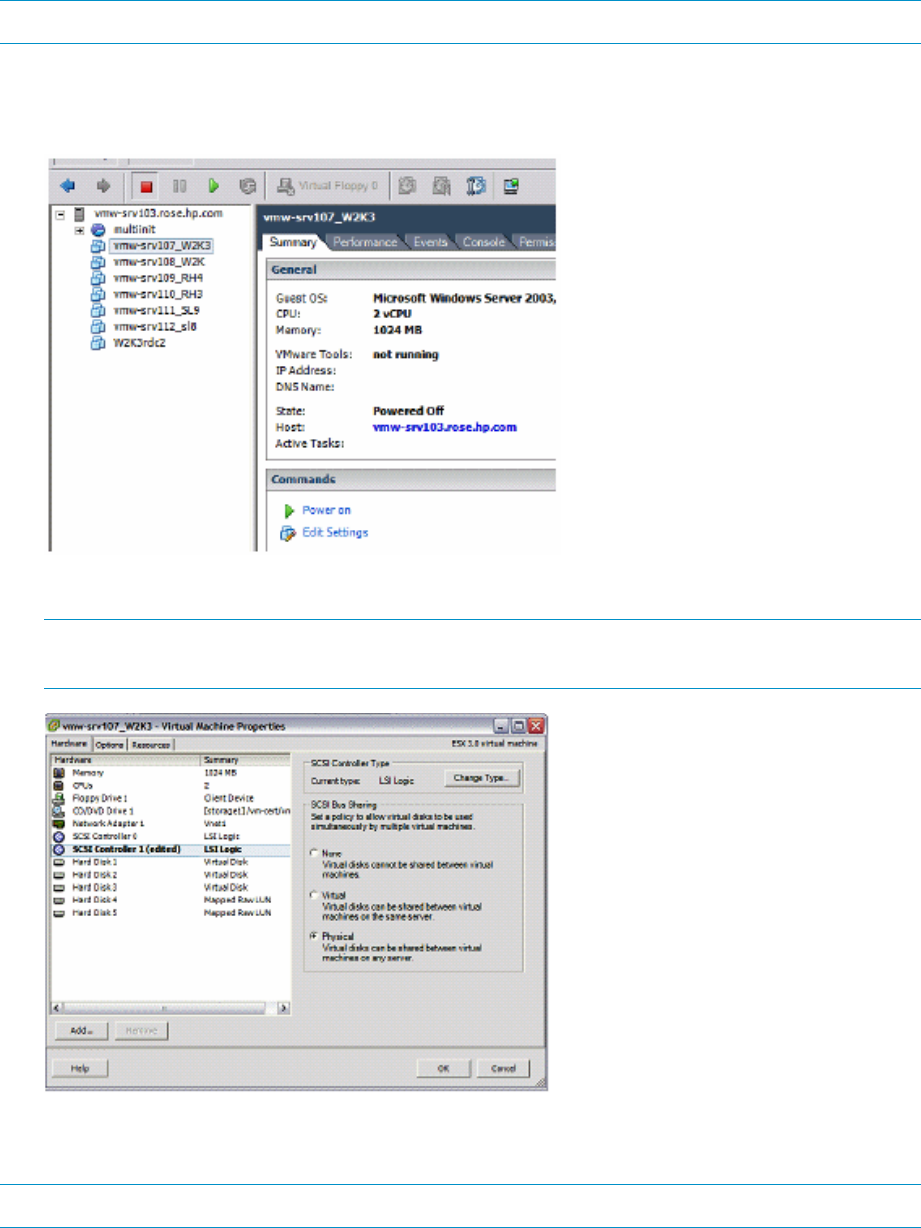

1. In VirtualCenter, select the VM you plan to edit, and then click Edit Settings.
2. Select the SCSI controller for use with your shared LUNs.
NOTE: If only one SCSI controller is present, add another disk that uses a different SCSI bus
than your current configured devices.
3. Select the Bus Sharing mode (virtual or physical) appropriate for your configuration, and then
click OK.
NOTE: Sharing VMDK disks is not supported.
Selecting the SCSI emulation driver
Select the HP supported SCSI emulation driver for a guest OS as follows:
1. Windows
• For Windows 2000 use the BusLogic SCSI driver.
• For Widows 2003 use the LSI Logic SCSI driver.
76 VMware
