Virtual Array Installation Guide 33

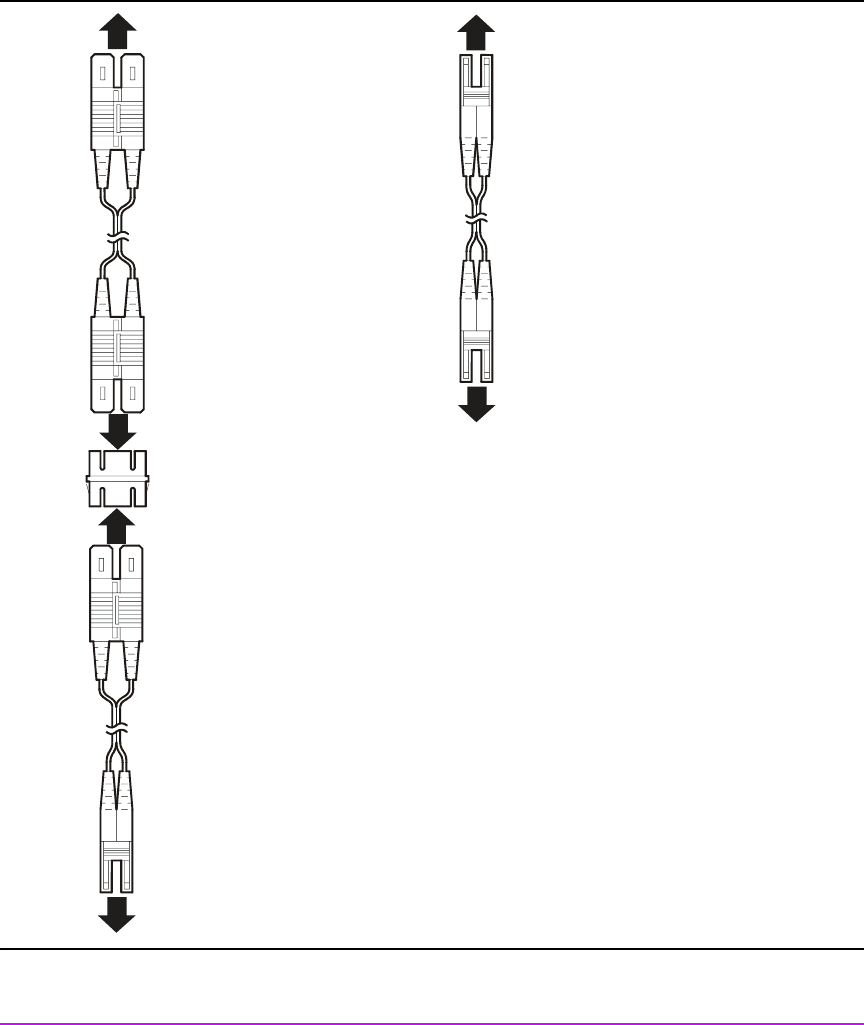

Figure 15 Fiber Optic Cables & Configurations
C7534A F/F FO Coupler
To Host Adapter Connector
Or To C7534A
To VA 7100 HOST FC Connector
Or To C7534A
To Host Adapter Connector
A3583A 2m SC-SC M/M FO Cable
A3531A 16m SC-SC M/M FO Cable
A3735A 50m SC-SC M/M FO Cable
A3736A 100m SC-SC M/M FO Cable
C7529A 2m LC-SC M/M FO Adapter Cable
C7530A 16m LC-SC M/M FO Adapter Cable
To VA 7400/7410 HOST FC Connector
To VA 7400/7410 HOST FC Connector
To Host Adapter Connector
C7524A 2m LC-LC M/M FO Cable
C7525A 16m LC-LC M/M FO Cable
C7526A 50m LC-LC M/M FO Cable
C7527A 100m LC-LC M/M FO Cable
Or To VA 7400/7410 DISK FC Connector
Or To Disk Enclosure PORT 0/1 FC-AL Connector
