20 Virtual Array Installation Guide

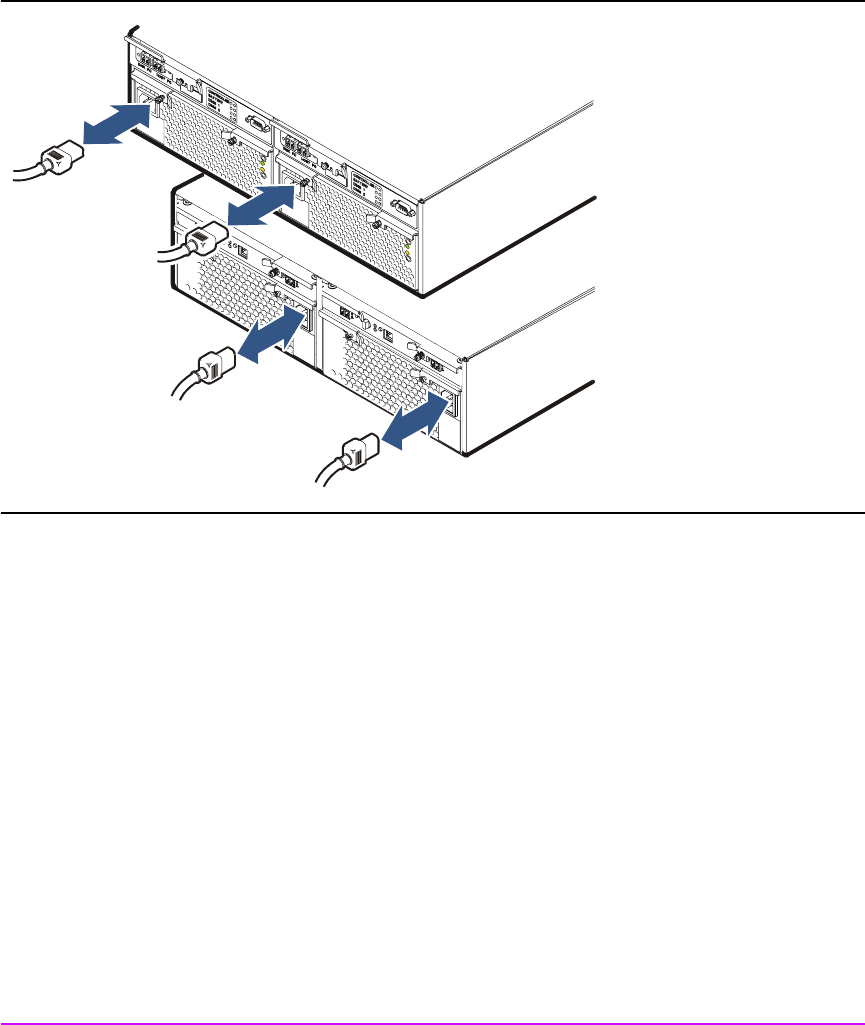

Figure 9 Connecting Enclosure Power Cords
Caution If it becomes necessary to completely remove power from the
array, you must unplug both power cords from both ac power
connectors on the array rear panel.
Step 5. Connect the RS-232 terminal
1 Connect one end of the null-modem serial cable to the RS-232 port on
either array controller. See Figure 10.
Note The RS-232 port on either array controller can communicate with
both controllers.
2 Connect the other end of the null-modem serial cable to the RS-232 port on
a laptop PC, desktop PC, or any RS-232 terminal.
3 Power-on the PC.
