Virtual Array Installation Guide 13

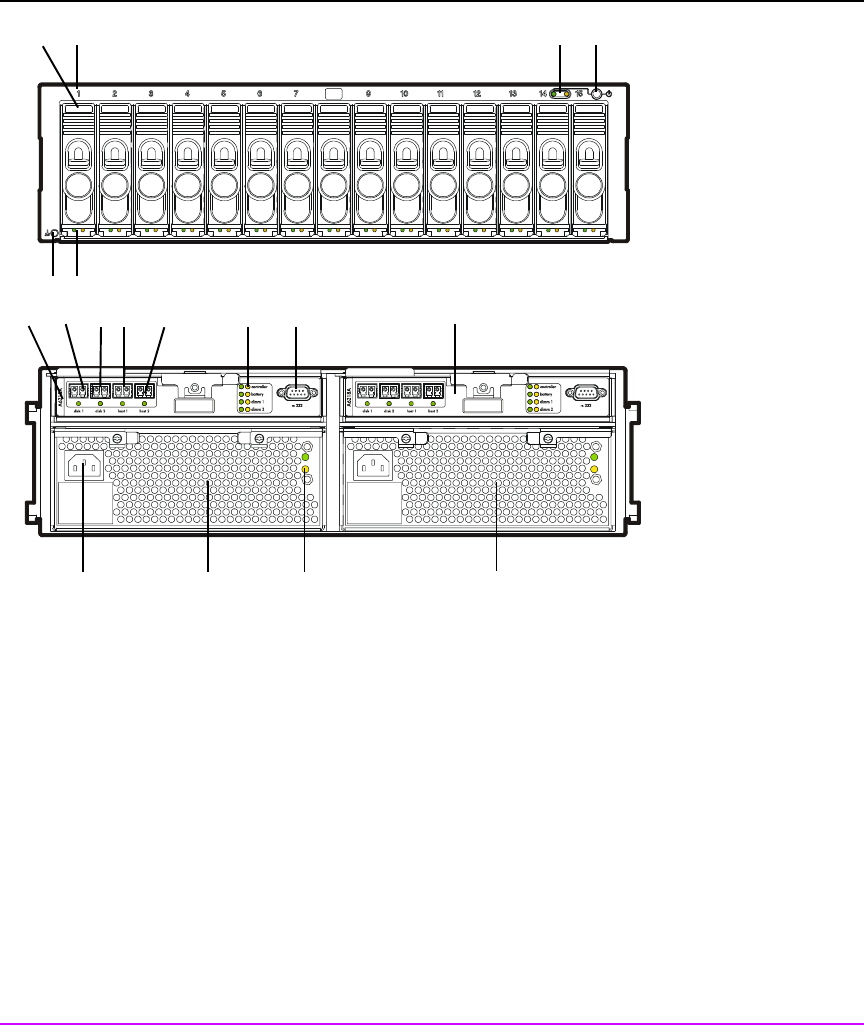

Figure 5 VA 7410 Controller Enclosure (A/AZ)
1 - Power/Standby Switch 10 - HOST 1 FC Port and LED
2 - System LEDs 11 - HOST 2 FC Port and LED
3 - Disk Drive Slot No. 1 (of 15) 12 - Array Controller LEDs
4 - Disk Drive 1 (of 15) 13 - RS-232 Connector
5 - Disk Drive LEDs 14 - Array Controller Card 2
6 - ESD Ground Receptacle 15 - Power Module 1
7 - Array Controller Card 1 16 - AC Power Connector
8 - DISK 1 FC Port and LED 17 - Power Module LEDs
9 - DISK 2 FC Port and LED 18 - Power Module 2
21
3
4
65
16 15 17 18
8
9
12
137
1110 14
