12 Virtual Array Installation Guide

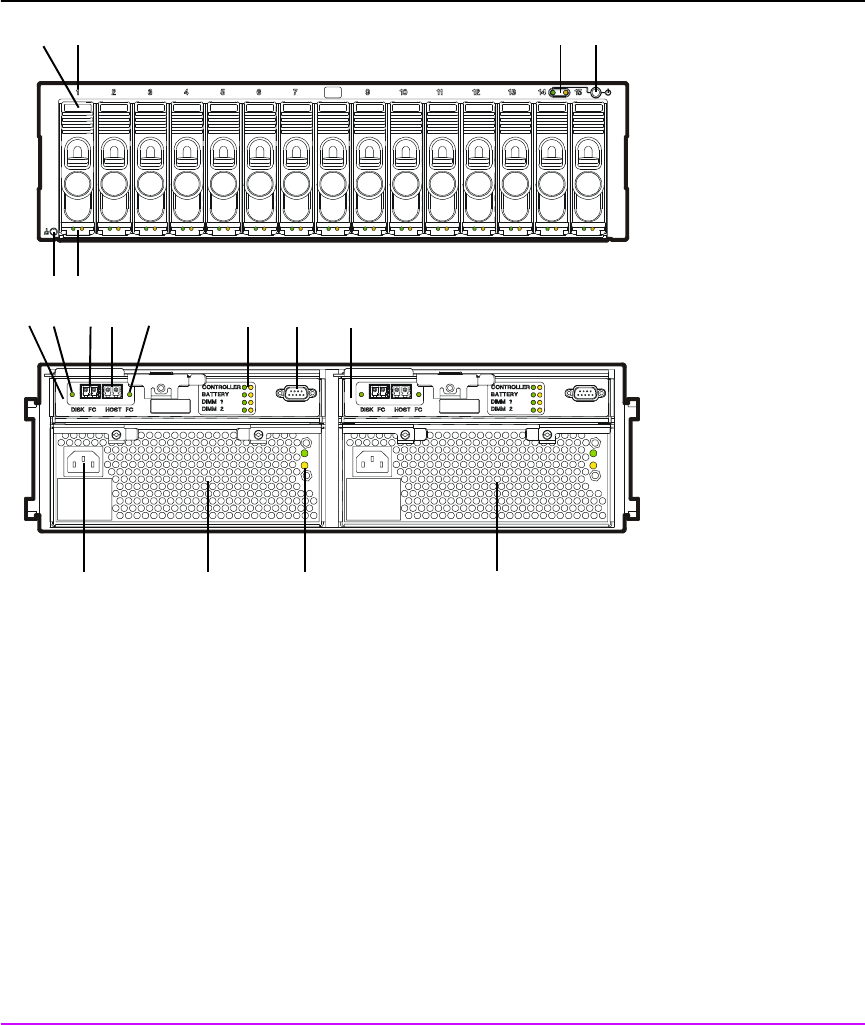

Figure 4 VA 7400 Controller Enclosure (A/AZ)
21
3
4
65
16 15 17 18
8
9
12 137
1110
14
1 - Power/Standby Switch 10 - HOST FC Connector
2 - System LEDs 11 - HOST FC LED
3 - Disk Drive Slot No. 1 (of 15) 12 - Array Controller LEDs
4 - Disk Drive 1 (of 15) 13 - RS-232 Connector
5 - Disk Drive LEDs 14 - Array Controller Card 2
6 - ESD Ground Receptacle 15 - Power Module 1
7 - Array Controller Card 1 16 - AC Power Connector
8 - DISK FC LED 17 - Power Module LEDs
9 - DISK FC Connector 18 - Power Module 2
