Servicing & Upgrading 95
Servicing & Upgrading

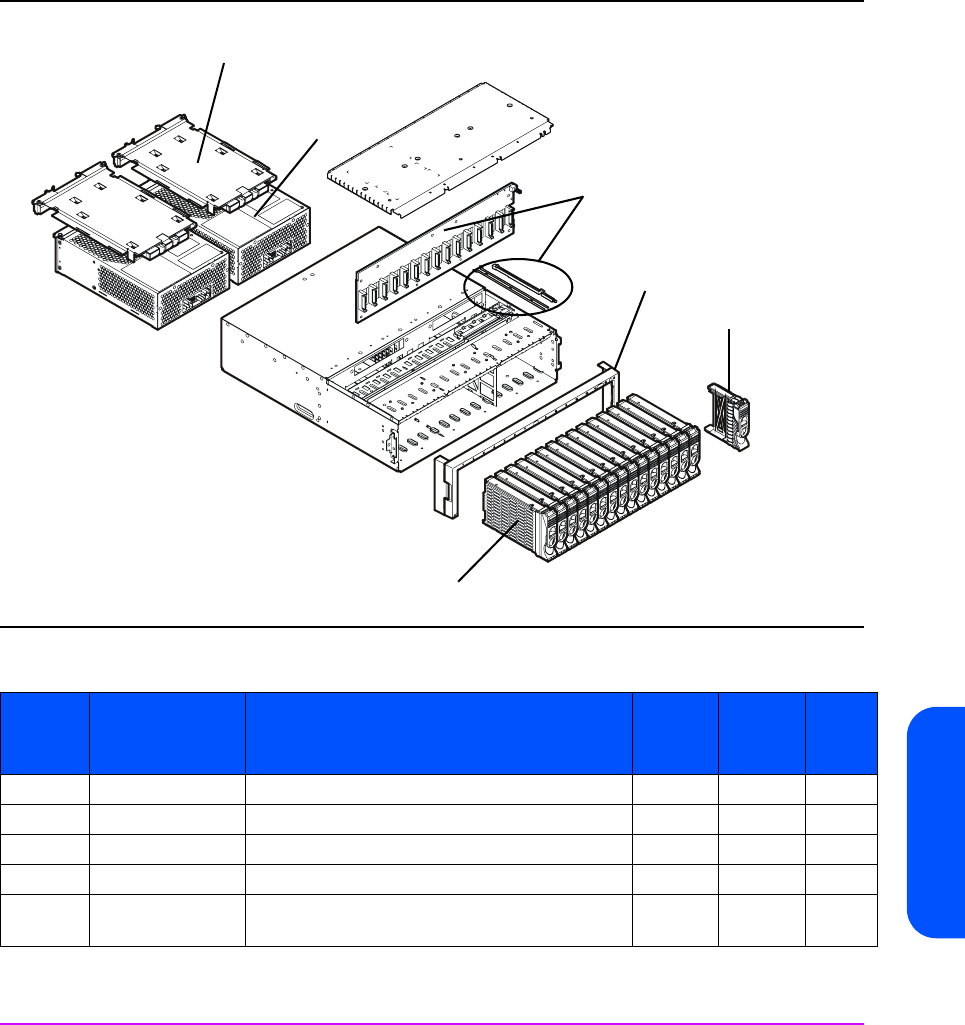

Figure 33 Disk Enclosure FRUs
Table 20 Disk Enclosure Field Replaceable Units (VA 7110/7400/7410 Only)
Fig. 24
Item
Part No. FRU Description
Qty
Per
Encl.
Exch./
Repl.
Part
FRU
Type
1 A6191-69001 Disk Drive, 18GB, 15k rpm, 512 bytes/sector 10-15 E CRU
1 A6192-69001 Disk Drive, 36GB, 10k rpm, 512 bytes/sector 10-15 E CRU
1 A6193-69001 Disk Drive, 36GB, 15k rpm, 512 bytes/sector 10-15 E CRU
1 A6194-69001 Disk Drive, 73GB, 10k rpm, 512 bytes/sector 10-15
1 A7288-69001 Disk Drive, 73GB, 15k rpm, 512 bytes/sector
(Supported on VA 7110 and VA 7410 only)
10-15 E CRU
1
2
3
4
5
6
