Troubleshooting 79
Troubleshooting

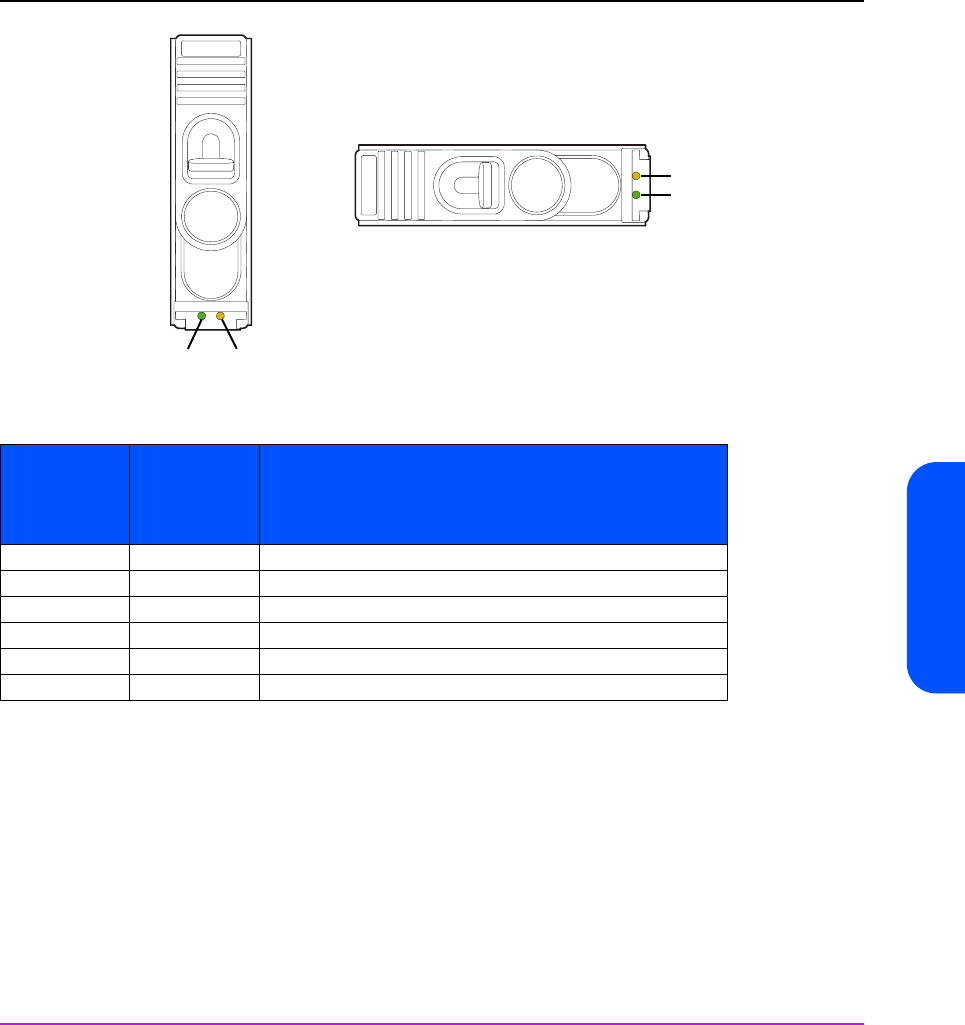

Figure 25 Disk Drive LEDs (Left: VA 71/7400 A/AZ; Right: VA 7100 D)
Table 7 Disk Drive LEDs Status Indications (See Figure 25)
*Controlled by the disk drive.
**Controlled by the array controller.
Note
— In a controller enclosure, the amber disk fault LED will flash during an
Auto Format process or when downing a disk drive. On a disk
enclosure, the amber system fault LED will also flash.
A
Disk
Activity
(Green*)
B
Disk Fault
(Amber**)
Indication
Off Off Disk not under power.
On Off Disk drive under power and operating normally.
Off On Disk drive fault.
On On Disk drive fault.
Flashing Off Disk drive self-test in progress
or
I/O activity.
On/Off Flashing Host is identifying disk drive.
A
B
A
B
