78 Troubleshooting
LED Status Indications
If a component fails in an enclosure, the fault will be indicated by at least two
amber fault LEDs. For example, if a disk drive fails, the system fault LED will
light and the disk drive fault LED will light.
The status LEDs for the various hardware assemblies are shown in Figure 24
through Figure 31. The status indications are described in the accompanying
tables.

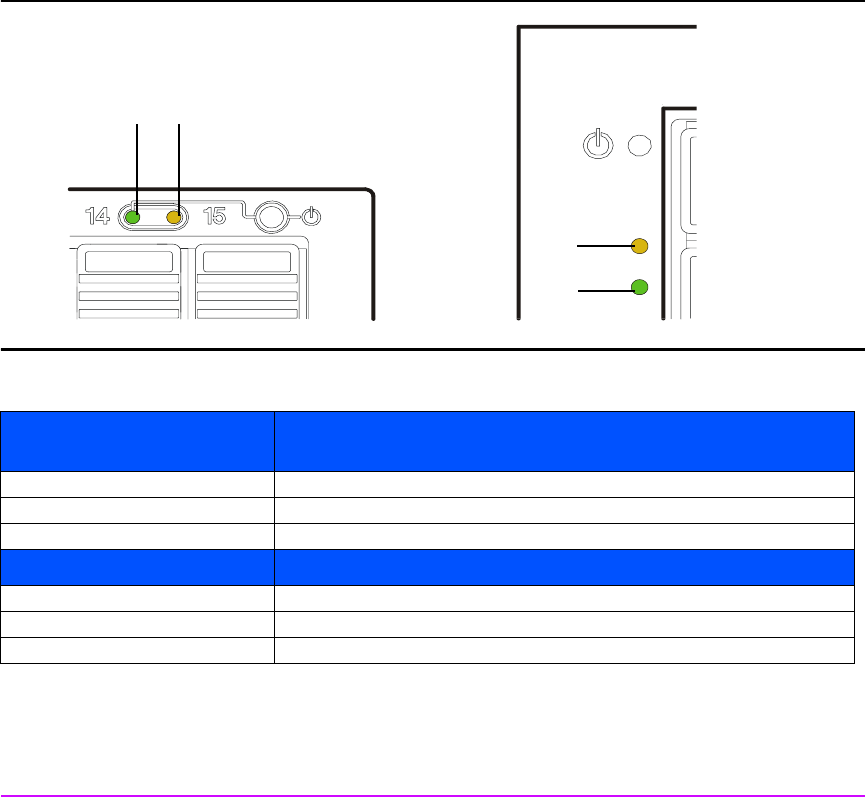

Figure 24 System LEDs
Table 6 System LEDs Status Indications (See Figure 24)
*States can occur simultaneously with Amber(**) states.
**States can occur simultaneously with Green(*) states.
A System Power/
Activity (Green)
Indication
Off* ANDed with Amber On or Amber Flashing
or
enclosure not under power.
On Enclosure under power; no I/O activity.
Flashing* I/O activity.
B System Fault (Amber)
Off Enclosure not under power
or
no active warning.
On** Warning active (FRU fault).
Flashing** Host is identifying a FRU.
AB
B
A
Rackmount enclosure
VA 7100 Desk Side
